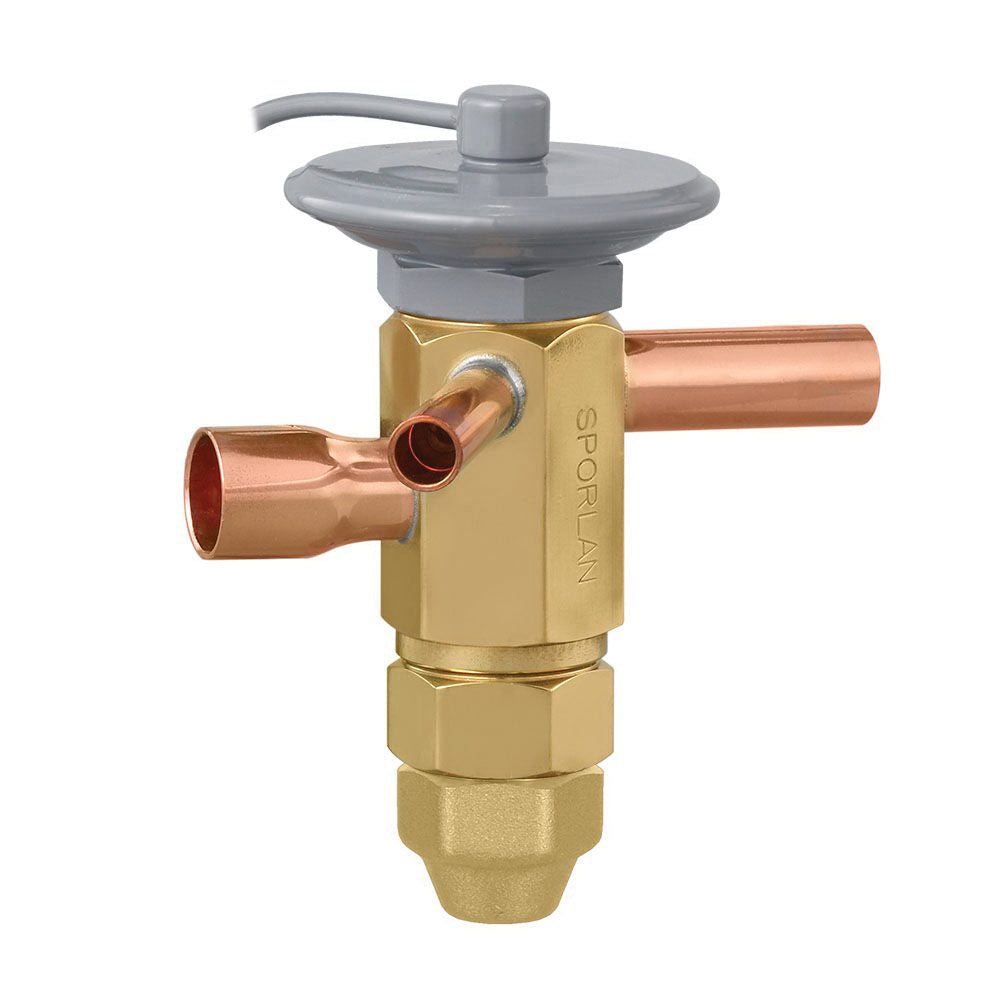

Parker 109894 Sporlan Thermostatic Expansion Valve

Product Description

The Parker 109894 Sporlan thermostatic expansion valve is suitable for refrigeration systems. It features a brass body and extended ODF connections. This valve includes adjustable superheat and a replaceable power element. Accessible internal parts make maintenance straightforward. Factory testing ensures leak-free operation.

• Brass construction for durability
• Designed for low-temperature refrigeration
• Internal equalizer and 50 mesh insertable strainer

Product Highlights

Durable construction and easy maintenance ensures reliability in refrigeration applications.

Product Information

Standard Information

• Brand: Parker
• MPN: 109894

Technical Specifications

• Body Material: Brass
• Connection Type: ODF Solder
• Nominal Size: 1/4 x 1/2 inch
• Refrigerant Type: R-404A
• Equalizer Type: Internal
• Strainer Type: 50 Mesh Insertable
• Seat Material: Brass
• Capillary Length: 30 inches
• Charge Type: Type ZP
• Nominal Capacity: 0.5 ton
• Pressure Rating: 450 psi
• Element Size: 43
• Dimensions: 3.76 inches High
• Outlet Connection Size: 1/2 ODF
• Inlet Connection Size: 1/4 ODF
• Thermostatic Charge: ZP
• Equalizer Method: Internally Equalized
• Application: Low Temp Refrigeration
