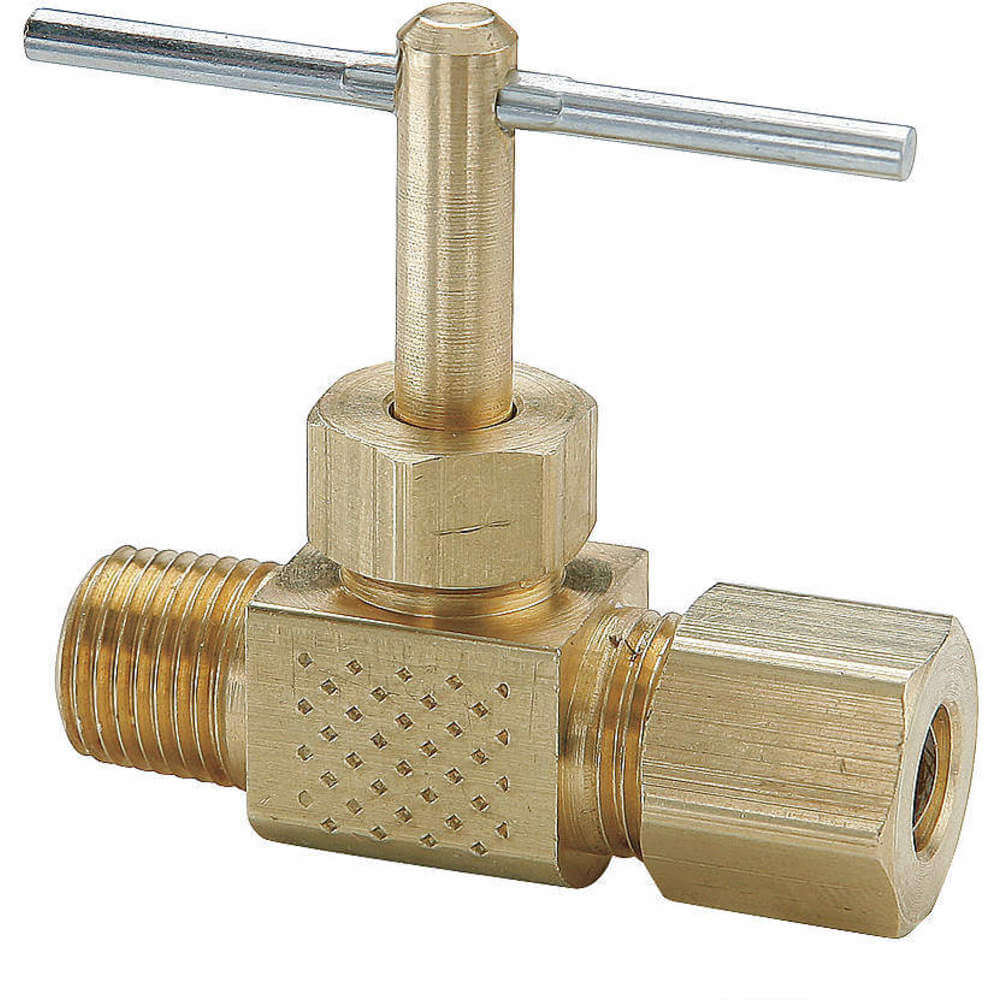

PARKER 109273 Needle Valve

Product Description

The PARKER 109273 is a needle valve made for accurate flow control. This valve has a brass body and stem, and it includes a compression connection to a male pipe. It is suitable for inline uses that need careful adjustments of fluid flow. The valve can sustain operating pressures up to one hundred fifty psi and temperatures from minus forty-five degrees Fahrenheit to plus two hundred fifty degrees Fahrenheit.

• Brass construction for durability.
• Compression connection fits male pipe.
• Supports inline applications for fluid control.

Product Highlights

This needle valve is ideal for various industrial applications. It helps manage fluid flow precisely in systems where control is crucial.

Product Information

Standard Information

• Item: Needle Valve
• Body Material: Brass

Technical Specifications

• Connection: Compression to Male Pipe
• Fitting Style: Straight
• Handle Material: Steel
• Length: 1.406 inches
• Max. Height: 1.5 inches
• Max. Operating Pressure: 150 psi
• Max. Operating Temp.: +65 degrees Celsius to +121 degrees Celsius
• Min. Operating Temp.: -42 degrees Celsius to -17 degrees Celsius
• Pipe Size: 1/4 inches
• Shape: Inline
• Stem Material: Brass
• Seal Material: Neoprene
• Standards: ISO 14001, ISO 9001, ROHS
• Valve Body Style: Inline
• Valve Series: NV
