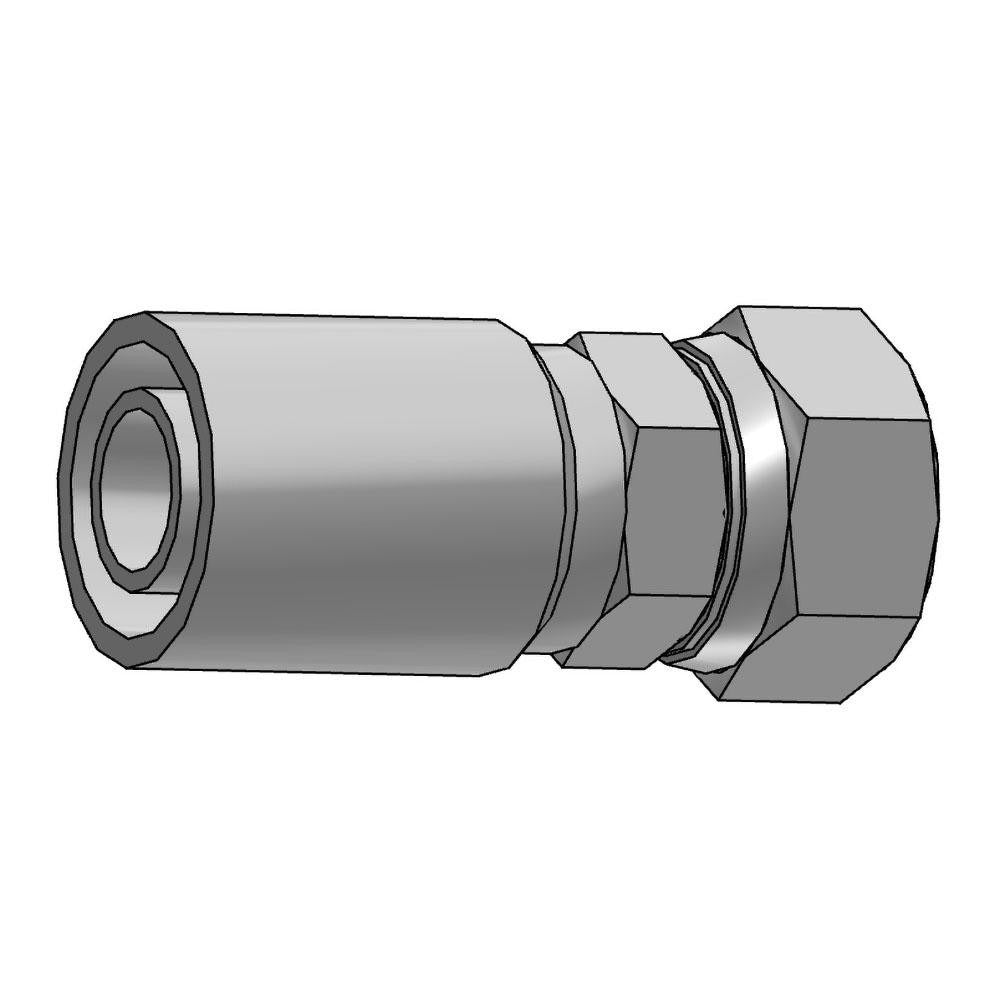

Parker 10843-12-12 Female Jic 37 Swivel Hose Fitting

Product Description

The PARKER 10843-12-12 is a straight, female JIC 37-degree swivel fitting designed for use with hydraulic hose assemblies in mobile and industrial fluid power systems. Constructed from steel, this Series 43 fitting accepts a 0.75-inch inside diameter hose (size -12) and connects via a 3/4-inch threaded female SAE interface. The swivel design allows the fitting to rotate during assembly, reducing hose twist and making it easier to achieve proper routing without putting stress on the hose or adjacent components. At 3.17 inches overall length, it is a standard-size end fitting installed by hydraulic technicians and fluid power mechanics in both shop and field settings.

This fitting is suited for hydraulic hose assembly applications across construction, agricultural, industrial, and mobile equipment platforms. It is compatible with a broad range of Parker hose series and is commonly used when building or repairing hydraulic lines that require a female JIC swivel termination. The straight configuration fits standard in-line routing scenarios where no bend or elbow geometry is needed at the connection point.

Key Features

• Female JIC 37-degree swivel design reduces hose twist during assembly and routing
• Steel construction for durability in hydraulic pressure service environments
• Straight shape for in-line hose termination without angular offset
• 3/4-inch female SAE threaded connection, size -12 hose ID
• 3.17-inch overall length fits standard hydraulic hose end fitting envelopes
• Sold individually — minimum order quantity of 1

Compatibility

Compatible with Parker hose series 187 (TC, ST), 302, 304, 387 (TC, ST), 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 (TC, ST), 722 (TC, ST), 787 (TC, ST), 797 (TC, ST), and 881 hoses.

Installation Notes

Installation should be performed by a qualified hydraulic technician following the hose and fitting manufacturer's assembly instructions. Depressurize and bleed down the hydraulic system fully before removing or replacing any fitting or hose assembly. Use the appropriate crimping equipment or field-attachable assembly tools as specified for Parker Series 43 fittings — do not substitute incompatible tooling. Verify thread engagement and swivel function before returning the system to service.
