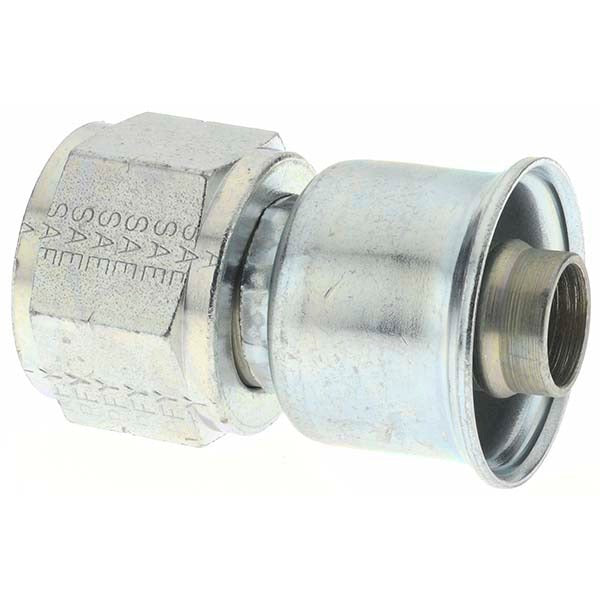

Parker 10826-12-12 Female Jic Swivel Fitting 5/8 Inch

Product Description

The PARKER 10826-12-12 is a straight female SAE 45-degree JIC swivel hydraulic hose fitting constructed from steel. It is designed to connect hydraulic hose assemblies at a straight angle using a swivel joint that allows for rotational alignment during installation and service. The fitting accepts a 5/8-inch hose diameter (hose size 10) and threads onto a 1-1/16-14 UNF male JIC port. The swivel design reduces stress on hose assemblies by allowing the fitting to be torqued without twisting the hose itself. Licensed hydraulic technicians and industrial maintenance professionals install this type of fitting in fluid power systems where leak-free, high-pressure connections are required.

This fitting is suited for use in mobile hydraulic systems, stationary fluid power equipment, and industrial machinery where straight inline hose-to-port connections are needed. The SAE 45-degree JIC thread form provides a metal-to-metal cone seat that resists leakage under pressure cycling. It is appropriate for both OEM assembly and field repair applications across agricultural, construction, and manufacturing equipment platforms.

Key Features

• Straight female SAE 45-degree JIC swivel configuration for inline hose-to-port connections
• Swivel design allows fitting rotation during tightening to prevent hose twist
• Compatible with 5/8-inch hydraulic hose (hose size 10)
• 1-1/16-14 UNF female JIC thread size for positive metal-to-metal cone seat seal
• Steel construction for durability in high-pressure hydraulic service

Compatibility

Designed as a straight female SAE 45-degree JIC swivel fitting for use with size 10 (5/8-inch) hydraulic hose and 1-1/16-14 male JIC port connections in standard fluid power systems.

Installation Notes

Installation should be performed by a qualified hydraulic technician with the system fully depressurized and the hydraulic power unit shut down before any fitting removal or assembly. Thread the fitting by hand to verify proper engagement before applying final torque using appropriate crow-foot or open-end wrenches. Inspect the JIC cone seat for nicks or damage before assembly, as surface defects can compromise the metal-to-metal seal. Follow the equipment manufacturer and applicable SAE J514 guidelines for assembly torque and inspection procedures.
