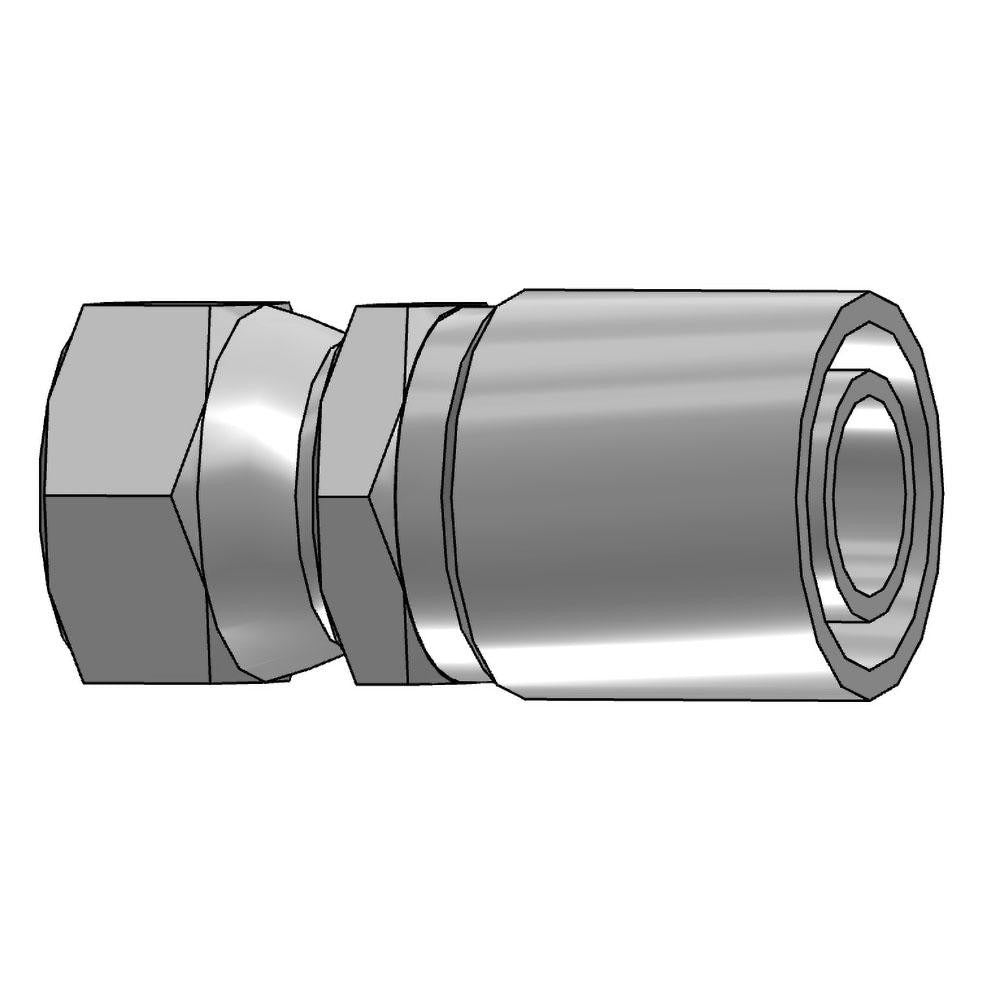

Parker 10743-20-20 Female Swivel Fitting 1-1/4 in Npsm Steel

Product Description

The PARKER 10743-20-20 is a straight female swivel fitting designed for use with hydraulic hose assemblies in demanding fluid-power applications. Built from steel with a threaded NPSM connection, this fitting accommodates a hose inside diameter of 1.25 inches (hose size 20) and measures 3.28 inches overall in length. It belongs to Parker's Series 43 fitting line and is intended for installation by hydraulic technicians and fluid-power specialists working on industrial, mobile, or OEM hydraulic systems. The swivel design allows the hose to be positioned without twisting during assembly, reducing installation stress on the hose end.

This fitting is suited for high-pressure hydraulic hose assemblies in both industrial and mobile equipment environments. The 1-1/4 inch NPSM thread and straight body configuration make it a practical choice for return lines, pressure lines, and routing applications where a fixed-end fitting would create hose twist. It is compatible with a broad range of Parker hydraulic hose series as listed in the compatibility section below.

Key Features

• Steel construction for durability in hydraulic fluid environments
• Straight body profile for in-line hose-to-port connections
• Female swivel design prevents hose twist during make-up
• 1-1/4 inches NPSM threaded connection
• 1.25 inches hose inside diameter (hose size 20)
• 3.28 inches overall length for standard assembly clearance

Compatibility

Compatible with Parker hose series: 187 TC, 187 ST, 302, 304, 387 TC, 387 ST, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 TC, 487 ST, 722 TC, 722 ST, 787 TC, 787 ST, 797 TC, 797 ST, and 881 hoses.

Installation Notes

Installation should be performed by a qualified hydraulic technician following applicable fluid-power safety standards. Depressurize and bleed down the hydraulic system completely before disconnecting or installing any fitting. Inspect the mating port thread and hose end for damage or contamination before assembly. Do not over-torque NPSM threaded connections; follow the hose and fitting manufacturer assembly guidelines for proper make-up.
