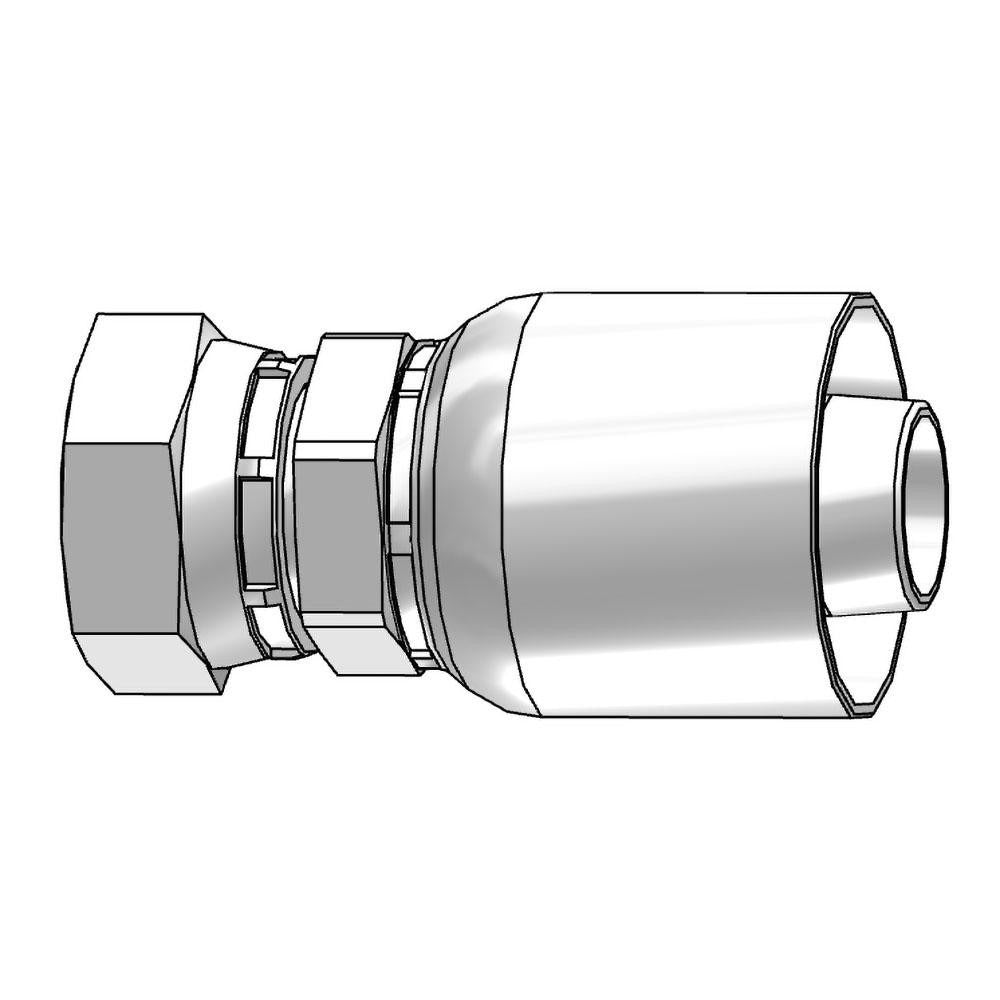

Parker 10743-16-16 Hydraulic Hose Female Swivel Fitting

Product Description

The PARKER 10743-16-16 is a female swivel fitting designed for hydraulic hose assemblies requiring a leak-resistant, rotatable connection at termination points. Built from steel, this Series 43 straight fitting accepts a 1-inch inside diameter hose and uses an NPSM threaded connection. The overall length measures 3.09 inches, making it a compact inline end fitting suited for tight routing in mobile equipment, industrial machinery, and fluid power systems. Installation is typically performed by hydraulic system technicians and mechanical tradespeople working with medium- to high-pressure hose assemblies.

This fitting is intended for use in hydraulic plumbing applications where a swivel end allows the hose to be positioned without twisting the assembly during makeup. The straight configuration suits direct-entry port connections on cylinders, valves, pumps, and manifolds. It is compatible with a wide range of Parker hose series and is sized at hose size 16, corresponding to a 1-inch hose ID. Typical applications include construction equipment, agricultural machinery, and stationary industrial hydraulic circuits.

Key Features

• Female swivel design allows rotational adjustment during assembly without twisting the hose
• NPSM threaded connection provides a standard straight mechanical thread interface
• Steel construction offers durability in high-pressure hydraulic environments
• Straight shape simplifies direct-port connections on hydraulic components
• Series 43 fitting rated for use with multiple Parker hose series
• Compact overall length of 3.09 inches suits space-constrained installations

Compatibility

Designed for use with Parker 187 TC, 187 ST, 302, 304, 387 TC, 387 ST, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 TC, 487 ST, 722 TC, 722 ST, 787 TC, 787 ST, 797 TC, 797 ST, and 881 hoses at hose size 16 (1-inch ID).

Installation Notes

Hydraulic fittings of this type are installed by qualified hydraulic technicians or millwrights following applicable fluid power safety standards. Always depressurize and de-energize the hydraulic circuit completely before disassembling or installing any hose end fittings. Ensure thread engagement is clean and free of debris before makeup, and verify that the hose crimp or reusable end has been assembled according to the hose manufacturer specifications before installing the swivel end into the port.
