Parker 10743-12-12 Female Swivel Hose Fitting 0.75 in

Product Description

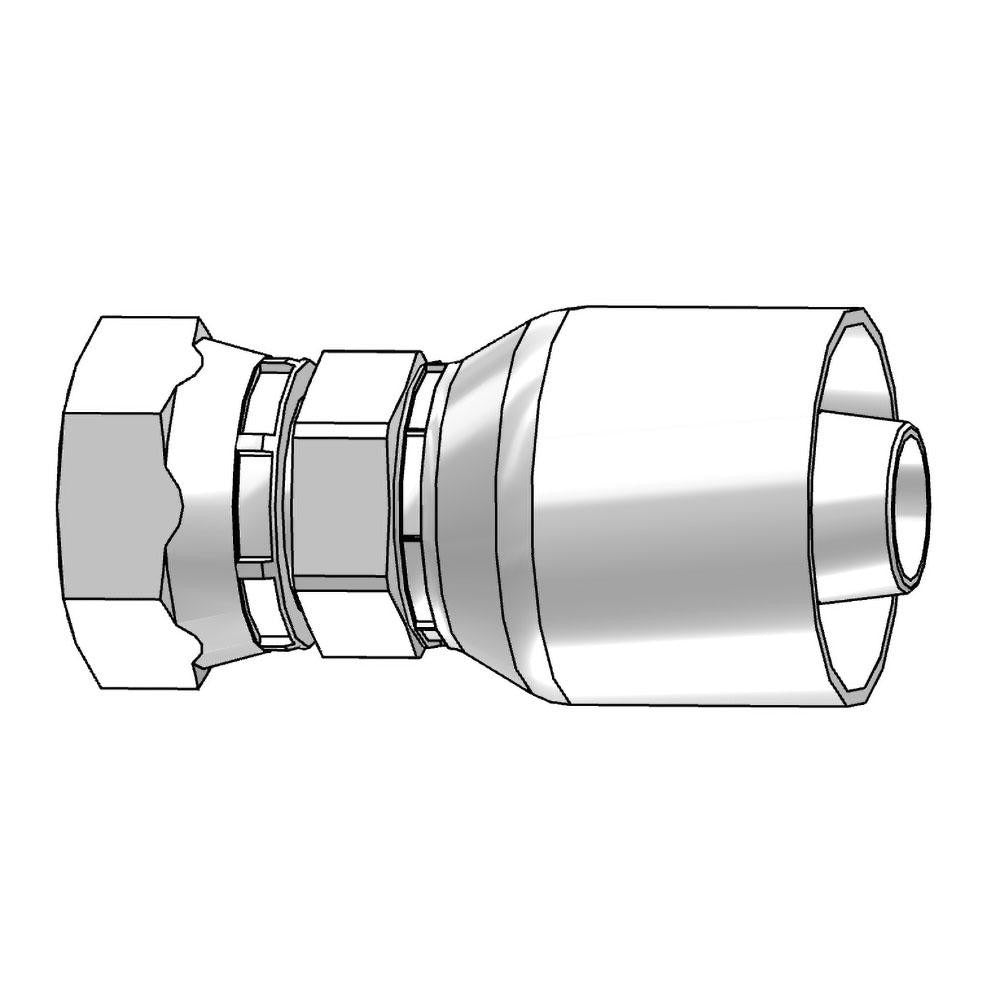

The PARKER 10743-12-12 is a straight female swivel fitting designed for use with hydraulic hose assemblies in fluid power systems. It features an NPSM threaded connection with a 3/4 inch thread size and accepts hose with a 0.75 inch inside diameter. The fitting is constructed from steel for durability in demanding hydraulic service. At 2.7 inches overall length, it provides a compact, reliable end connection for medium- and high-pressure hose routing. This type of fitting is installed by hydraulic technicians and fluid power specialists building or repairing hose assemblies in industrial, mobile, and commercial equipment applications.

This fitting is suited for hydraulic systems requiring a swivel-style female end connection that allows hose positioning without twisting the hose body. The straight configuration makes it appropriate for in-line connections where the hose runs parallel to the port or component being serviced. It is compatible with a wide range of Parker hose series, making it a common stock item for shops performing hydraulic hose fabrication and field repair work.

Key Features

• Female swivel design allows hose alignment without twisting during assembly
• NPSM threaded connection, 3/4 inch thread size
• Straight shape for in-line port connections
• Steel construction for high-pressure hydraulic service
• 0.75 inch hose inside diameter, Size 12 hose compatibility
• 2.7 inches overall length

Compatibility

Designed for use with Parker 187 TC, 187 ST, 302, 304, 387 TC, 387 ST, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 TC, 487 ST, 722 TC, 722 ST, 787 TC, 787 ST, 797 TC, 797 ST, and 881 hose series.

Installation Notes

Installation should be performed by a qualified hydraulic technician familiar with fluid power hose assembly practices. Depressurize and isolate the hydraulic system completely before disconnecting or installing any hose fittings. Use appropriate hose insertion and swaging or crimping equipment as required by the hose series being assembled. Inspect threads for damage and verify torque requirements per the applicable system or equipment manufacturer specifications before returning the system to service.
