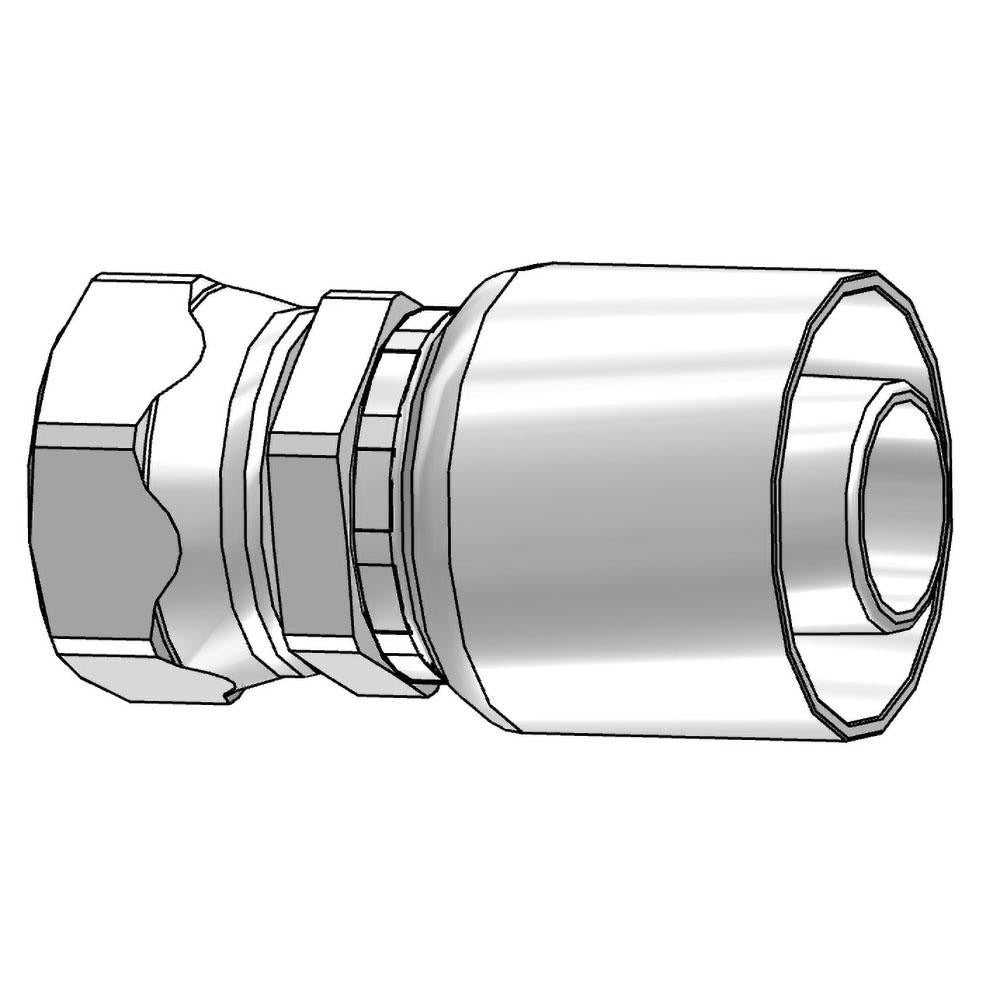

Parker 10671-24-24 Hydraulic Hose Female Swivel Fitting

Product Description

The PARKER 10671-24-24 is a female swivel connector fitting designed for hydraulic hose assemblies in industrial and mobile equipment applications. Built from steel, this straight fitting features a female JIC threaded connection and accepts hoses with a 1.5 inch inside diameter. The 1-7/8-12 thread size provides a secure, leak-resistant joint when properly torqued. At 4.69 inches in overall length, the fitting suits high-pressure hydraulic lines where a reliable swivel connection is required to prevent hose twist during installation and operation. Hydraulic technicians and fluid power specialists are the primary installers for this type of fitting.

This fitting is suited for use in hydraulic systems on industrial machinery, mobile equipment, and similar fluid power applications. Parker lists compatibility with 722TC and 774 hose series, making it a direct match for those hose assemblies. The straight configuration simplifies routing in applications where in-line connections are preferred. The female JIC interface is a widely used standard in hydraulic plumbing, supporting compatibility across many system configurations.

Key Features

• 1.5 inch hose inside diameter for use with larger-bore hydraulic lines
• 1-7/8-12 female JIC threaded connection for secure, leak-resistant assembly
• Straight shape for straightforward in-line hose routing
• Steel construction for durability in high-pressure hydraulic environments
• Swivel design reduces hose twist and torsional stress during installation
• Compatible with Parker 722TC and 774 hose series

Compatibility

Designed for use with Parker 722TC and 774 hose series. Consult Parker Series 71 fitting documentation to confirm fitment for specific system pressures and hose configurations.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and fully isolate the hydraulic system before disconnecting or installing any fittings to prevent injury from high-pressure fluid release. Use appropriate flare seat hand tools and a calibrated torque wrench rated for the fitting size. Follow the equipment manufacturer and fitting manufacturer torque specifications, and inspect the JIC flare seat for damage before assembly.
