Parker 10643-32-32 Female Jic 37 Deg Swivel Fitting 2in

Product Description

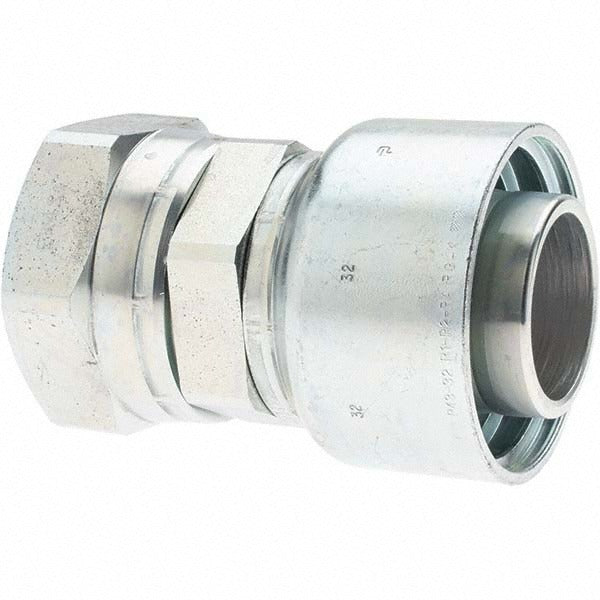

The PARKER 10643-32-32 is a straight female JIC 37-degree swivel hydraulic hose fitting machined from steel. It is designed to terminate a 2-inch hydraulic hose with a 2-1/2-12 inch thread connection, providing a secure, leak-resistant joint in high-pressure hydraulic circuits. The swivel design allows the fitting to rotate during installation, reducing hose twist and making routing in tight plumbing configurations more manageable. This type of fitting is installed by hydraulic system technicians, industrial mechanics, and fluid power specialists on mobile and stationary equipment alike.

This fitting is suited for use in industrial and mobile hydraulic systems where JIC 37-degree flare connections are specified. The straight configuration makes it a direct in-line termination at the hose end, connecting to corresponding male JIC ports on valves, cylinders, pumps, or manifolds. It is appropriate for both new hose assembly fabrication and field replacement of worn or damaged fittings in production, construction, and agricultural equipment hydraulic lines.

Key Features

• 37-degree JIC flare swivel design reduces hose twist during assembly and routing
• Steel construction provides durability in high-pressure hydraulic service
• Straight fitting orientation for direct in-line hose termination
• 2-1/2-12 inch thread size for connection to standard JIC male ports
• Compatible with 2-inch hydraulic hose size (hose size designation 32)

Compatibility

Designed as an OEM-style replacement or new-build fitting for 2-inch hydraulic hose assemblies using JIC 37-degree flare connections in industrial and mobile hydraulic systems.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit completely before removing or installing any fitting. Inspect the JIC flare seat on both the fitting and mating port for nicks or damage before assembly, as flare-face integrity is critical to a leak-free joint. Follow SAE J514 torque guidelines for JIC fittings of this thread size, and do not use thread sealant tape on JIC flare connections.
