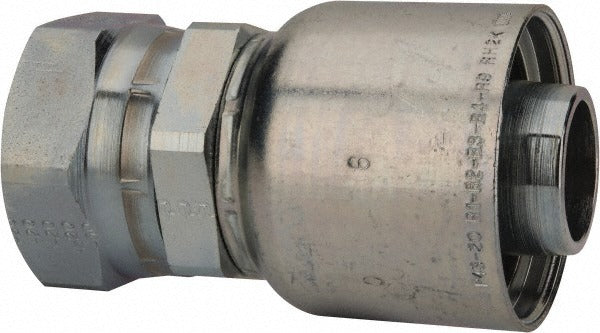

Parker 10643-20-20 Female Sae 45 Swivel Fitting 1.25 in

Product Description

The PARKER 10643-20-20 is a female SAE 45-degree swivel fitting designed for use with hydraulic hose assemblies in demanding fluid-power applications. Built from steel with a straight, threaded connection profile, this fitting features a female JIC swivel end that allows rotational adjustment during assembly without twisting the hose. It carries a hose inside diameter of 1.25 inches (hose size 20) and an overall length of 3.94 inches (100 mm). The 1-1/4 inch thread size is compatible with standard SAE 45-degree flare hydraulic circuits. Hydraulic technicians and fluid-power mechanics install this fitting in mobile equipment, industrial machinery, and high-pressure plumbing systems where secure, leak-resistant hose termination is required.

This fitting is suited for use on hose size 20 (1-1/4 inch ID) hydraulic hose assemblies in both mobile and stationary hydraulic systems. It is rated for use with Parker hose series including 187, TC, ST, 302, 304, 387, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487, TC, ST, 722, TC, ST, 787, TC, ST, 797, TC, ST, and 881 hoses. Typical applications include agricultural equipment, construction machinery, and industrial hydraulic power units where a reliable SAE 45-degree flare swivel termination is specified.

Key Features

• Female SAE 45-degree swivel design allows rotational positioning during hose assembly without hose twist
• Steel construction provides high-pressure durability suitable for demanding hydraulic circuits
• Straight shape with threaded connection for straightforward in-line hose termination
• 1.25 inch (hose size 20) inside diameter matches large-bore hydraulic hose assemblies
• Overall length of 3.94 inches (100 mm) suits standard hydraulic manifold and port spacing
• Meets ISO 12151-5 standards and California Proposition 65 compliance requirements

Compatibility

Designed for use with Parker hose series 187, TC, ST, 302, 304, 387, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 TC ST, 722 TC ST, 787 TC ST, 797 TC ST, and 881 hoses in size 20 (1-1/4 inch ID). Part of Parker Series 43 fittings.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid-power mechanic familiar with SAE 45-degree flare fitting assembly procedures. Depressurize and isolate the hydraulic circuit fully before disassembly or installation of any fitting. Use appropriate thread sealant or verify dry-seal thread requirements per system specifications before torquing. Follow applicable hydraulic system safety standards and equipment manufacturer guidelines during assembly and system recommissioning.
