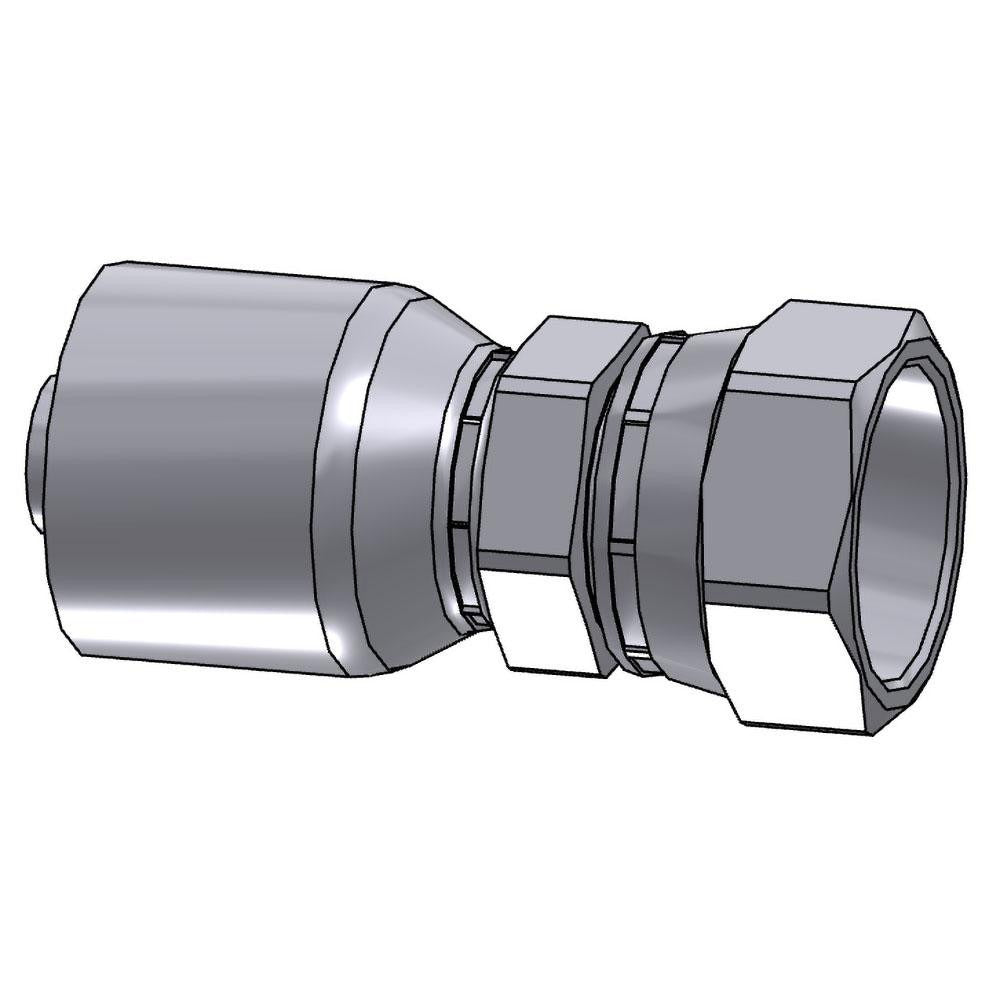

Parker 10643-16-12 Female Jic 37 Deg Swivel Fitting

Product Description

The PARKER 10643-16-12 is a straight, female JIC 37-degree swivel hose fitting designed for hydraulic hose assemblies requiring a reliable threaded connection. Constructed from steel, this Series 43 fitting accepts a 0.75-inch inside-diameter hose and features a 3/4-inch thread size. The swivel design allows the fitting body to rotate during assembly, reducing torque stress on the hose and making it easier to achieve a leak-free connection in tight plumbing configurations. With an overall length of 3.31 inches, it is a compact, heavy-duty component used in fluid power systems across industrial and mobile hydraulic applications. Licensed hydraulic technicians and fluid power specialists are the primary installers.

This fitting is suited for medium- and high-pressure hydraulic hose assemblies in both stationary and mobile equipment. The female JIC swivel configuration is common in industrial machinery, construction equipment, and agricultural hydraulic circuits where hose routing requires a fixed-angle termination point without twisting the hose body. It is rated for use with a broad range of Parker hose series, making it a versatile component for new assemblies and field repairs alike.

Key Features

• Female JIC 37-degree swivel interface reduces hose twist during assembly
• Steel construction provides durability in high-pressure hydraulic environments
• Straight shape simplifies in-line hose routing and end connections
• 3.31-inch overall length fits compact hydraulic plumbing configurations
• Threaded connection type for secure, leak-resistant joints
• Meets ISO 12151-5 standard for hose fittings and connections

Compatibility

Designed for use with Parker 187 TC, 187 ST, 302, 304, 387 TC, 387 ST, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 TC, 487 ST, 722 TC, 722 ST, 787 TC, 787 ST, 797 TC, 797 ST, and 881 hoses with a hose size designation of 16 and 0.75-inch inside diameter.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and bleed the hydraulic system fully before removing or installing any fittings. Use appropriate JIC flare assembly tooling and follow the fitting manufacturer torque guidelines for steel JIC connections. This product is subject to California Proposition 65 warnings and should be handled accordingly.
