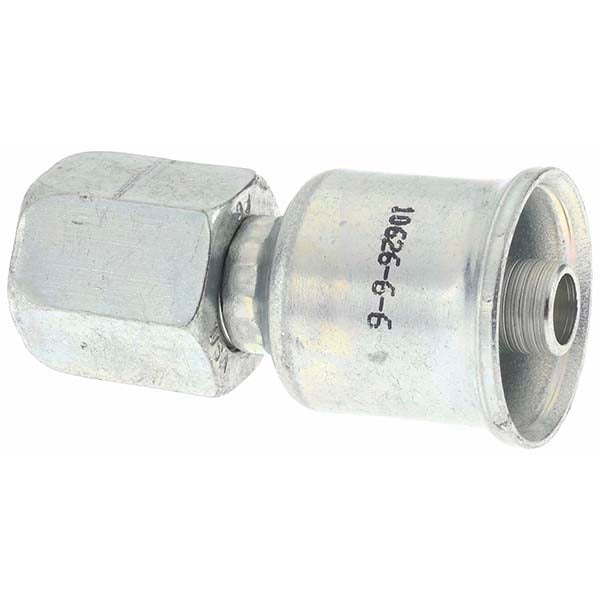

Parker 10626-6-6 Female Jic 37 Deg Swivel Fitting 5/16

Product Description

The PARKER 10626-6-6 is a straight, threaded female JIC 37-degree swivel fitting designed for use with hydraulic hose assemblies in fluid power systems. Machined from steel, it features a 9/16-18 thread size and accepts hoses with a 5/16-inch (0.3125 inches) inside diameter. The swivel design allows the fitting to rotate during assembly, reducing hose twist and making routing in tight installations more manageable. At 1.81 inches in overall length, it is a compact inline connector suited for medium-pressure hydraulic circuits. Installation is typically handled by hydraulic system technicians, pipefitters, or maintenance mechanics working on mobile or industrial equipment.

This fitting is intended for hydraulic hose assemblies where a female JIC 37-degree flare connection is required at the hose end. The straight configuration suits runs where no angled transition is needed. It is sized for hose size 5, corresponding to a 5/16-inch inside diameter, and is part of the Parker Series 26 fitting line. Typical applications include mobile equipment, agricultural machinery, industrial hydraulic circuits, and any system requiring a reliable threaded JIC swivel termination on the hose end.

Key Features

• Female JIC 37-degree swivel end allows rotation during assembly to prevent hose twist
• Steel construction for durability in hydraulic fluid power environments
• 9/16-18 thread size for standard JIC flare connections
• Straight shape for direct inline hose-to-port routing
• 1.81-inch overall length in a compact footprint
• Compatible with multiple Parker hose series for broad application coverage

Compatibility

Designed for use with Parker hose series 201, 206, 213, 221FR, 225, 244, 266, 285, 293, and SS23CG, all in hose size 5 (5/16-inch inside diameter).

Installation Notes

Installation should be performed by a qualified hydraulic technician or pipefitter familiar with JIC flare fittings and hydraulic system safety procedures. Always depressurize and bleed down the hydraulic circuit completely before disconnecting or installing any fitting. Hand-tighten the swivel nut onto the mating JIC seat before applying final torque with appropriate flare-nut wrenches to avoid cross-threading. Inspect the JIC seating surface and hose end for damage or contamination before assembly.
