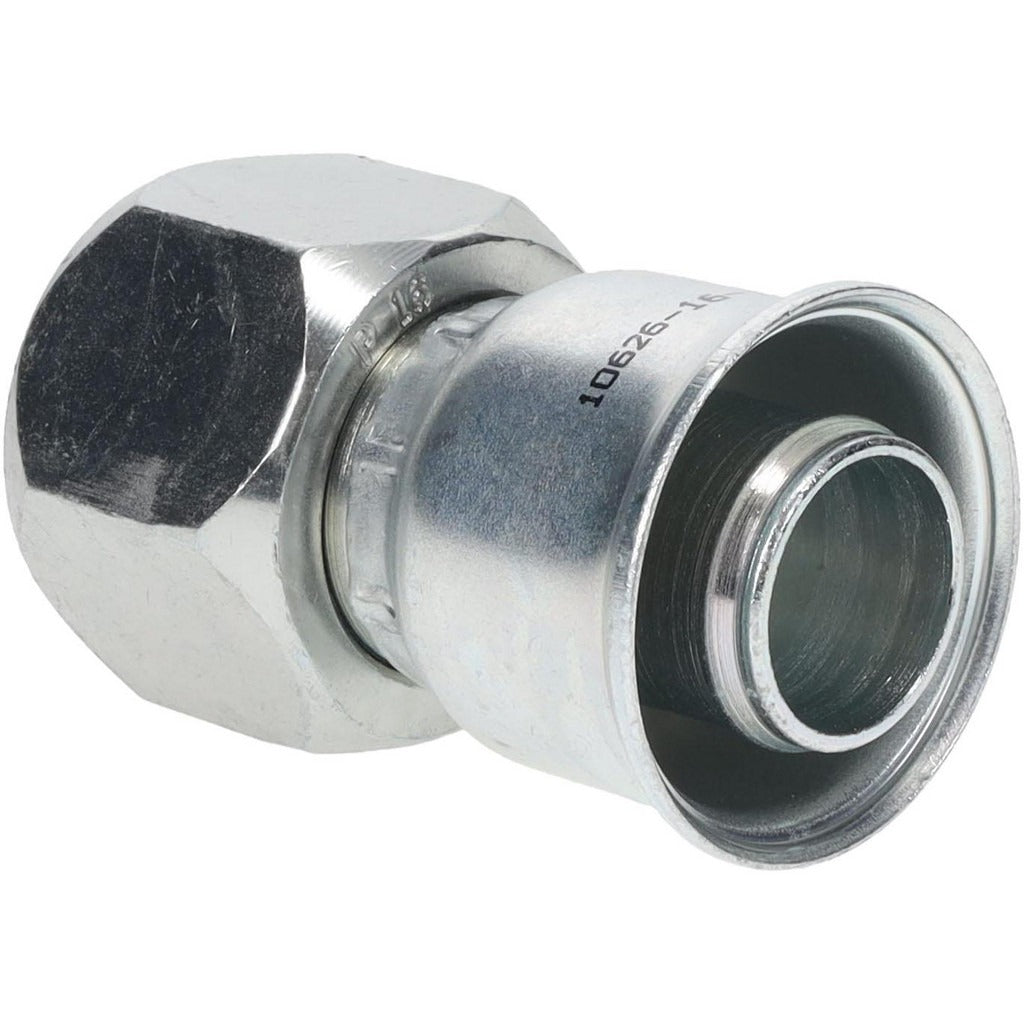

Parker 10626-16-16 Female Jic 37 Deg Swivel Fitting

Product Description

The PARKER 10626-16-16 is a straight, threaded female JIC 37-degree swivel fitting designed for use in hydraulic hose assemblies. Built from steel, this Series 26 fitting accepts hoses with a 0.875 inch (7/8 inch) inside diameter and threads onto mating JIC fittings using a 1-5/16-12 thread. At 2.53 inches overall length, it provides a compact, reliable connection point in medium- to high-pressure hydraulic circuits. Licensed hydraulic technicians and fluid power mechanics install this fitting in mobile equipment, industrial machinery, and other hydraulic systems where a swivel end is needed to simplify routing and reduce hose stress.

This fitting is intended for hydraulic hose assembly and repair applications across industrial and mobile hydraulic systems. The swivel design allows the fitting to rotate during installation, eliminating torsional stress in the hose and making it easier to achieve proper routing. It is well suited for both shop-bench hose fabrication and field repair work where quick, leak-free reconnection is required.

Key Features

• Female JIC 37-degree swivel end for torsion-free hose installation
• 0.875 inch (7/8 inch) hose inside diameter, Series 26
• 1-5/16-12 inch thread size for standard JIC mating connections
• Straight shape simplifies inline hose-to-port connections
• Steel construction for durability in hydraulic service
• 2.53 inch overall length for compact assembly clearance

Compatibility

Designed for use with Parker hose series 201, 206, 213, 221FR, 225, 244, 266, 285, 293, and SS23CG with a 14 mm (0.875 inch) inside diameter.

Installation Notes

Installation should be performed by a qualified fluid power mechanic or hydraulic technician. Depressurize and de-energize the hydraulic system completely before disconnecting any fittings or hose assemblies. Use appropriate wrenches on both the fitting body and the mating port to avoid distorting the swivel — do not grip the swivel collar to torque the assembly. Inspect the JIC seating surfaces for nicks or debris before making up the connection.
