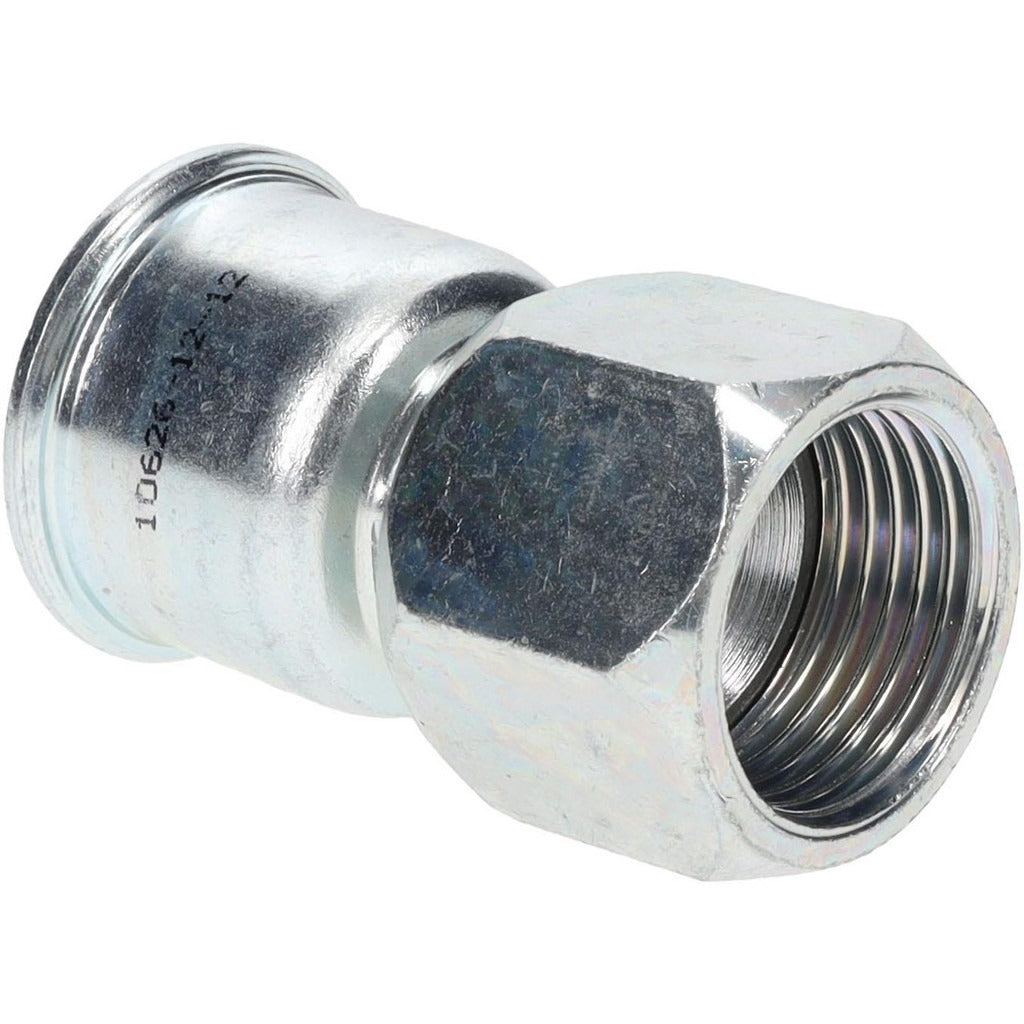

Parker 10626-12-12 Female Jic 37 Deg Swivel Fitting

Product Description

The PARKER 10626-12-12 is a straight female JIC 37-degree swivel fitting designed for hydraulic hose assemblies in high-pressure fluid power systems. Machined from steel, this fitting accepts a 5/8 inch (0.625 inch ID) hose and uses a 1-1/16-12 threaded connection to mate with standard JIC 37-degree flare ports. The overall length is 2.29 inches. Its swivel design allows the hose to be positioned without twisting during assembly, reducing installation error and hose stress at the connection point. Hydraulic technicians and fluid power mechanics install this fitting in mobile equipment, industrial machinery, and other hydraulic circuit applications.

This fitting is part of the PARKER Series 26 fitting line and is intended for use with compatible hydraulic hoses in hose size 10 (5/8 inch ID). It is suited for straight-run terminations where a female JIC swivel end is required on one end of the hose assembly. Applications include agricultural equipment, construction machinery, manufacturing equipment, and other mobile or stationary hydraulic systems where JIC 37-degree swivel fittings are the specified connection standard.

Key Features

• Female JIC 37-degree swivel design allows hose positioning without twisting during makeup
• Steel construction for durability in high-pressure hydraulic service
• Straight shape for direct in-line hose-to-port connections
• Thread size 1-1/16-12 conforms to standard JIC fitting dimensions
• Compatible with Parker Series 26 hydraulic hose assemblies
• Sold in a package quantity of 2 units

Compatibility

Designed for use with Parker hose series 201, 206, 213, 221FR, 225, 244, 266, 285, 293, and SS23CG in hose size 10 (5/8 inch ID).

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and isolate the hydraulic circuit completely before disassembling any fittings or hose ends. Inspect the JIC 37-degree seat and threads for damage before assembly, and tighten to the fitting manufacturer's recommended procedure using appropriate flare-nut wrenches. Do not use thread sealant on JIC flare-seat connections, as the metal-to-metal seat provides the primary seal.
