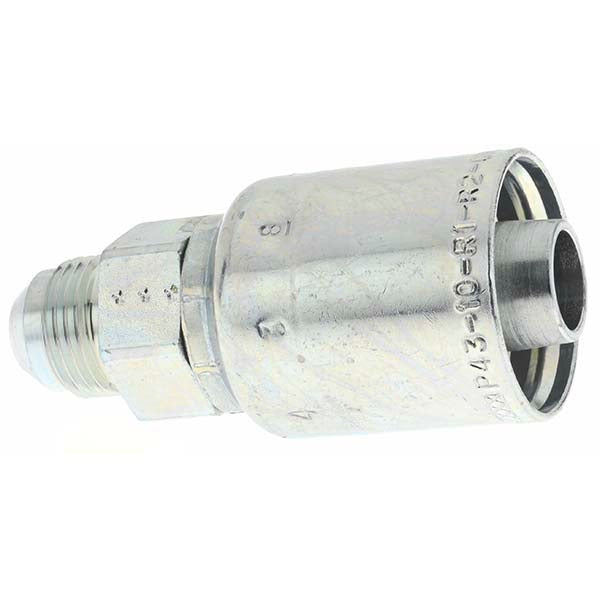

Parker 10343-8-10 Hydraulic Swivel Fitting 0.625 in Male Sae

Product Description

The PARKER 10343-8-10 is a straight swivel fitting designed for hydraulic hose assemblies requiring a secure, leak-resistant threaded connection. Manufactured from steel, this fitting features a Male SAE (JIC) shaft type with a 3/4-16 thread size and accepts hoses with a 0.625 inch (5/8 inch) inside diameter, corresponding to a hose size 10. The straight configuration and threaded connection type make it a standard choice for fluid power systems where routing flexibility and reliable sealing are required. It is installed by hydraulic system technicians and fluid power specialists working in industrial, mobile, and construction equipment applications.

This fitting is suited for hydraulic systems across a wide range of professional and industrial applications. It is compatible with multiple hose series where a size 10, 0.625 inch ID hose end termination is needed. The Male SAE (JIC) thread form is widely used in mobile equipment, industrial machinery, and related hydraulic circuits. The straight swivel design allows the hose to be oriented during assembly without twisting the hose body, reducing stress on the assembly at the connection point.

Key Features

• Straight swivel configuration reduces hose twist during installation and service
• Male SAE (JIC) thread type for broad compatibility with standard hydraulic ports
• 3/4-16 thread size with 0.625 inch hose inside diameter for size 10 hose
• Steel construction for durability in high-pressure hydraulic environments
• Overall length of 2.85 inches (72.00 mm) for predictable routing clearance
• Meets ISO 12151-5 standards; subject to California Proposition 65 requirements

Compatibility

Designed for use with the following Parker hose series: 187 (TC, ST), 302, 304, 387 (TC, ST), 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 (TC, ST), 722 (TC, ST), 787 (TC, ST), 797 (TC, ST), and 881 hoses.

Installation Notes

Installation should be performed by a qualified hydraulic technician familiar with fluid power fitting assembly practices. Depressurize and isolate the hydraulic circuit completely before disconnecting or installing any fittings. Use appropriate wrenches on the fitting flats only — do not grip the swivel body to avoid damage to the swivel mechanism. Follow SAE and ISO torque and assembly guidelines applicable to JIC threaded connections for the specific system pressure rating.
