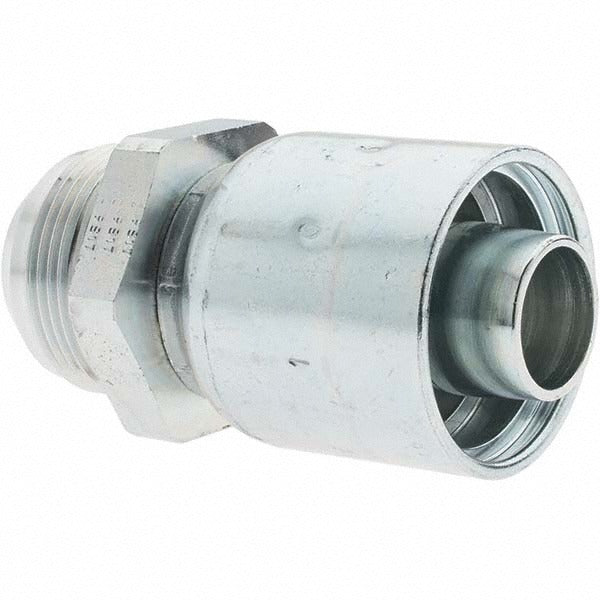

Parker 10343-20-16 Hydraulic Hose Swivel Fitting 1 in Jic

Product Description

The PARKER 10343-20-16 is a hydraulic hose swivel fitting designed for high-pressure fluid transfer systems. It connects hose assemblies to hydraulic circuits using a threaded JIC interface, allowing rotational movement at the joint to reduce hose stress during installation and operation. The fitting accommodates a 1-inch inside diameter hose with a hose size designation of 16 and a thread size of 1-5/8-12. It is installed by hydraulic system technicians and maintenance professionals working on mobile equipment, industrial machinery, and fluid power circuits where secure, leak-resistant connections are required.

This swivel fitting is suited for hydraulic hose assemblies in both industrial and mobile hydraulic applications. The JIC threaded connection type is widely used in fluid power systems where reliable, reusable fittings are needed. Typical installations include equipment hydraulic lines, cylinder feed circuits, and pump outlet assemblies where hose routing requires a swivel point to prevent twisting or torsional load on the hose. This fitting ships in a package quantity of two.

Key Features

• Swivel design reduces hose torsion and stress during assembly and operation
• JIC threaded connection for secure, leak-resistant hydraulic joints
• 1-inch inside diameter hose compatibility with size 16 hose designation
• Thread size 1-5/8-12 for standard hydraulic circuit integration
• Package quantity of 2 per order unit

Compatibility

Designed for use with size 16 hydraulic hose assemblies having a 1-inch inside diameter and a 1-5/8-12 JIC threaded port. Verify hose end and port thread specifications before installation.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and isolate the hydraulic circuit completely before disconnecting or replacing any fitting. Use appropriate wrenching flats and do not over-torque the swivel body. Inspect threads and sealing surfaces for damage before assembly and ensure compatibility with system pressure ratings.
