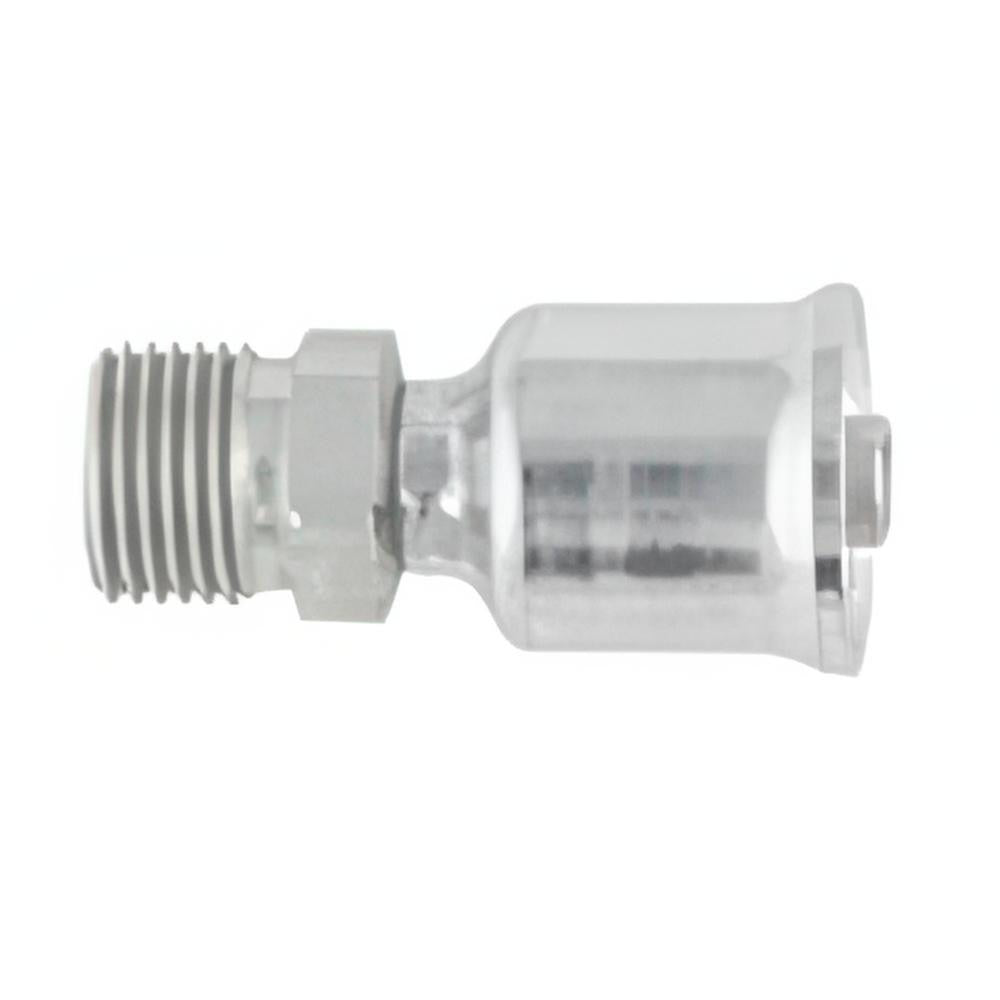

Parker 10126-16-16 Hydraulic Hose Male Rigid Fitting

Product Description

The PARKER 10126-16-16 is a male rigid hydraulic hose fitting machined from steel for use in high-pressure hydraulic plumbing assemblies. It features a Male NPTF thread interface sized at 1-11/2 threads per inch and accepts a 7/8-inch hose diameter. The rigid construction provides a fixed, non-swivel connection at the hose end, making it appropriate for applications where the hose position is set during assembly and does not require rotational adjustment after installation. Hydraulic technicians and fluid power mechanics typically install this fitting when building or repairing hydraulic lines on industrial equipment, mobile machinery, or fluid power systems.

This fitting is suited for hydraulic hose assemblies that terminate at a Male NPTF threaded port. NPTF threads provide a pressure-tight mechanical seal without relying on a separate sealant, which makes them a common choice in hydraulic and fluid power circuits. The 7/8-inch hose size and size-16 dash designation place this fitting in a mid-range flow capacity category, appropriate for return lines, pressure lines, and case drain circuits depending on system pressure ratings. It is packaged in a quantity of two units per pack.

Key Features

• Male rigid fitting construction for fixed-position hose termination
• Male NPTF thread provides a pressure-tight seal at the port connection
• Steel construction for durability in hydraulic fluid service
• 7/8-inch hose diameter with size-16 dash rating
• Thread size: 1-11/2 NPTF
• Packaged as two fittings per pack

Compatibility

Designed as an OEM-style replacement or new-build hydraulic hose fitting for systems using 7/8-inch hydraulic hose with a Male NPTF port connection in the size-16 dash series.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and isolate the hydraulic circuit completely before disconnecting any existing fittings or hose assemblies. NPTF threads are designed to seal on the thread form itself; inspect threads for damage before assembly and apply appropriate thread sealant only if required by the system specification. Torque to the hydraulic system manufacturer's published values for the port size and fitting material.
