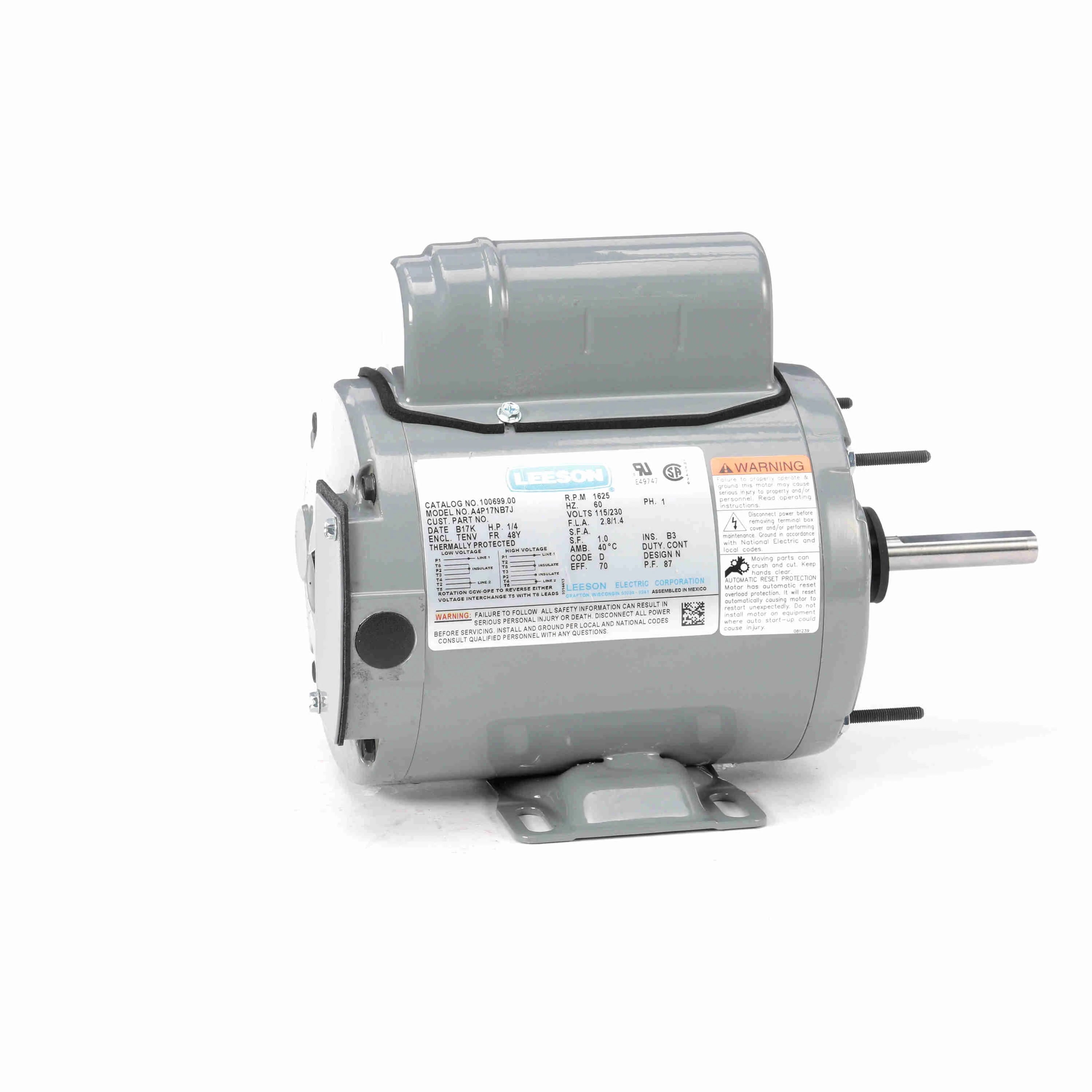

PARKER 100699 Single Phase Agricultural Motor 0.187 kW

Product Description

The PARKER 100699 is a reliable single-phase agricultural motor designed for continuous operation. It functions at sixty hertz and performs optimally in temperatures up to forty degrees Celsius. This motor features a totally enclosed non-ventilated design, ensuring durability and a rigid base for secure mounting.

• Operates efficiently at 115/230 volts AC
• Built with a permanent split capacitor for steady performance
• Automatic thermal protection for enhanced safety

Product Highlights

The PARKER 100699 is an ideal choice for agricultural applications where durability and efficiency are crucial.

Product Information

Standard Information

• Brand: PARKER
• Phase: 1

Technical Specifications

• MPN: 100699
• Frequency: 60 Hz
• Input Voltage: 115/230V AC
• Output Power: 0.187 kW
• Full Load Amps: 2.8/1.4 A
• Nameplate RPM: 1625 RPM
• Motor Type: Permanent Split Capacitor
• Motor Enclosure Design: Totally Enclosed Non Ventilated
• Mounting Type: Rigid Base
• Motor Shaft Rotation: Selective Counter Clockwise
• Frame: 48Y
• Ambient Temperature: 40 degrees C
• Duty Cycle: Continuous
• Insulation Class: Class B
• Service Factor: 1
• Thermal Protection: Automatic
• Shaft Diameter: 1/2 inches
• Grease Type: PG-44A
• Power Factor: 87
• Code: D
• Design: D, N
• Assembly: LO100699
• Packaging: B
• Type: PN
