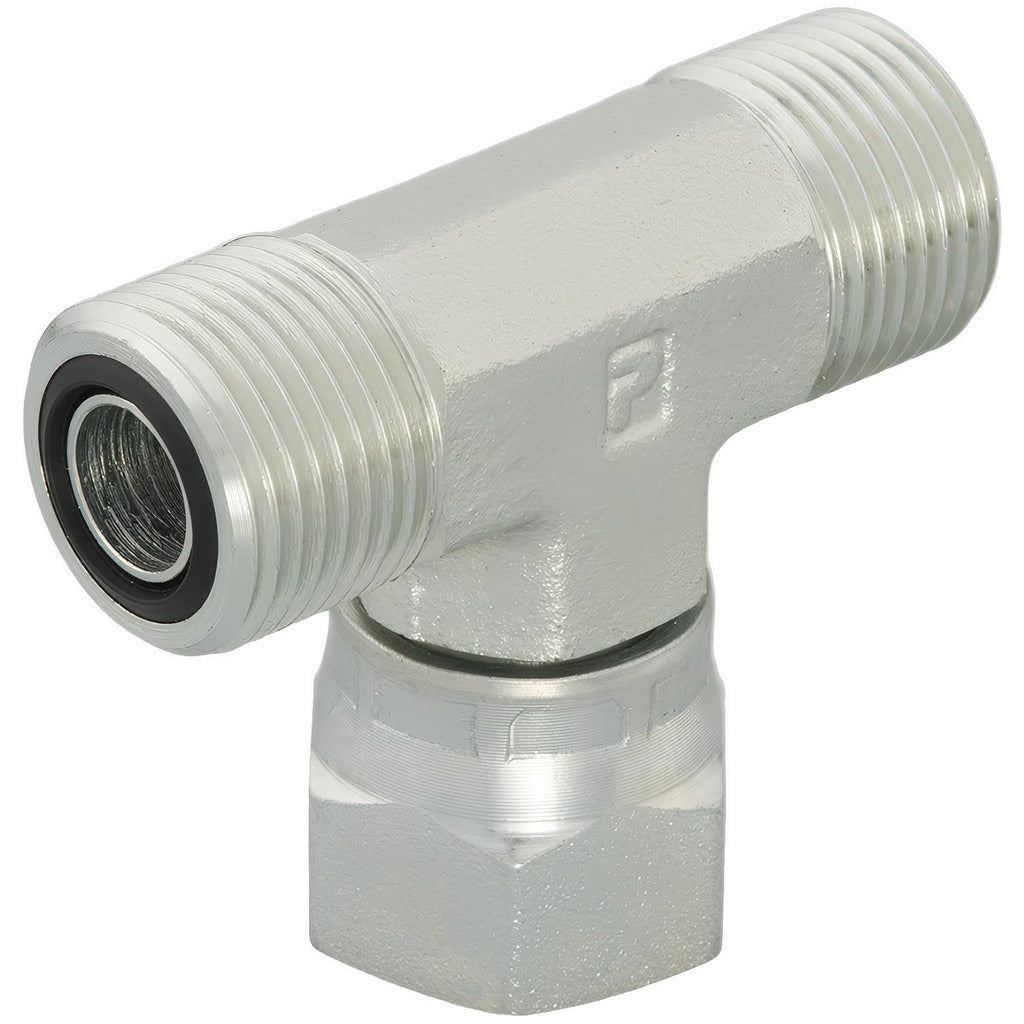

Parker 10 S6LO-S Swivel Branch Fitting Orfs 5/8 in 6000 Psi

Product Description

The PARKER 10 S6LO-S is a compression tube swivel branch fitting designed for high-pressure hydraulic and fluid system connections. It features an O-Ring Face Seal (ORFS) end connection that provides a leak-free seal by compressing an elastomeric O-ring against a flat seating surface. Built from steel, this fitting is rated for a maximum working pressure of 6000 psi and accommodates tubing with a 5/8 inch outside diameter. It is used primarily in fluid conveyance systems where secure, vibration-resistant connections are required. Licensed plumbers, hydraulic system technicians, and fluid power specialists are the typical installers of this component.

This swivel branch fitting is suited for hydraulic lines, fluid transfer assemblies, and industrial plumbing systems where branch connections must be made without rotating adjacent tubing or components. The swivel design allows the fitting body to rotate during installation, which simplifies alignment in tight or congested plumbing runs. Its ORFS configuration makes it appropriate for high-pressure applications where threaded or flared connections may be more prone to leakage under dynamic loads or vibration.

Key Features

• O-Ring Face Seal (ORFS) end connections provide reliable leak-free performance at high pressures
• Maximum working pressure of 6000 psi suits demanding hydraulic and fluid power applications
• Swivel body design simplifies installation alignment without rotating connected tubing
• Steel construction offers durability and resistance to mechanical stress in industrial environments
• Accepts 5/8 inch outside diameter compression tubing

Compatibility

Designed as an OEM-style replacement or direct-install compression tube swivel branch fitting for hydraulic and fluid conveyance systems requiring ORFS connections with 5/8 inch OD tubing at working pressures up to 6000 psi.

Installation Notes

Installation of hydraulic fittings should be performed by a qualified fluid power technician or licensed plumber familiar with high-pressure system safety practices. Depressurize and isolate the fluid system completely before removing or installing any fittings. Inspect the O-ring and seating surface for damage before assembly, and ensure the seating face is clean and free of debris to achieve a proper seal. Follow applicable industry standards and equipment manufacturer torque guidelines when making up connections.
