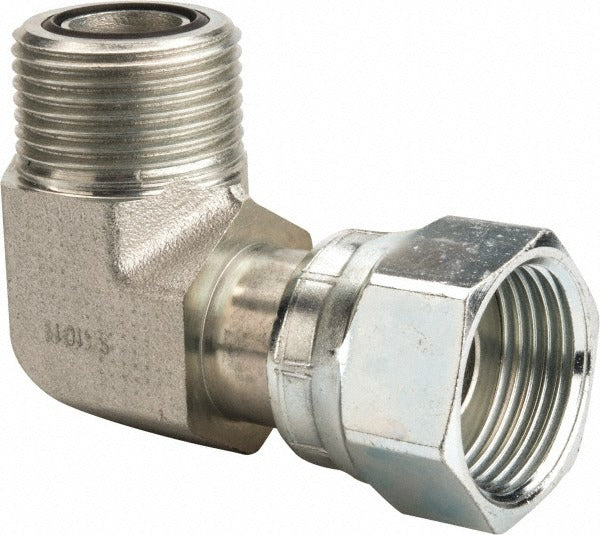

Parker 10 C6LO-S Swivel Elbow Orfs Steel 5/8 in 6000 Psi

Product Description

The PARKER 10 C6LO-S is a compression tube swivel elbow fitting with an O-Ring Face Seal (ORFS) end connection, manufactured in steel. It is designed to connect tubing at a 90-degree angle in high-pressure hydraulic and fluid power systems while providing a leak-resistant seal through a flat-face O-ring at the threaded connection. The swivel feature allows the fitting body to rotate during assembly, reducing torsional stress on the tube. Rated to 6000 psi maximum working pressure, this fitting suits demanding industrial and mobile hydraulic applications. Installation is performed by licensed fluid power technicians and qualified hydraulic service professionals.

This fitting is used in hydraulic plumbing assemblies where a directional change is needed and a reliable, vibration-resistant seal is required. The ORFS connection type is common in mobile equipment, agricultural machinery, construction equipment, and industrial hydraulic circuits. The UNF thread standard ensures compatibility with standard inch-series hydraulic components. This fitting accommodates tubing with a 5/8 inch outside diameter and is sold individually.

Key Features

• O-Ring Face Seal (ORFS) end connection provides a high-integrity, leak-resistant flat-face seal
• Swivel elbow design reduces torsional stress on tubing during assembly and in service
• 6000 psi maximum working pressure rating for high-pressure hydraulic circuits
• Steel construction for strength and durability in demanding environments
• UNF thread standard for compatibility with standard inch-series hydraulic fittings
• 5/8 inch tube outside diameter sizing

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic systems that use ORFS-style connections with UNF threads and 5/8 inch OD compression tubing.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Inspect the O-ring and sealing face for damage before assembly and replace the O-ring if any deformation or cuts are present. Tighten to the fitting manufacturer's standard procedure for ORFS connections and verify there are no leaks before returning the system to service.
