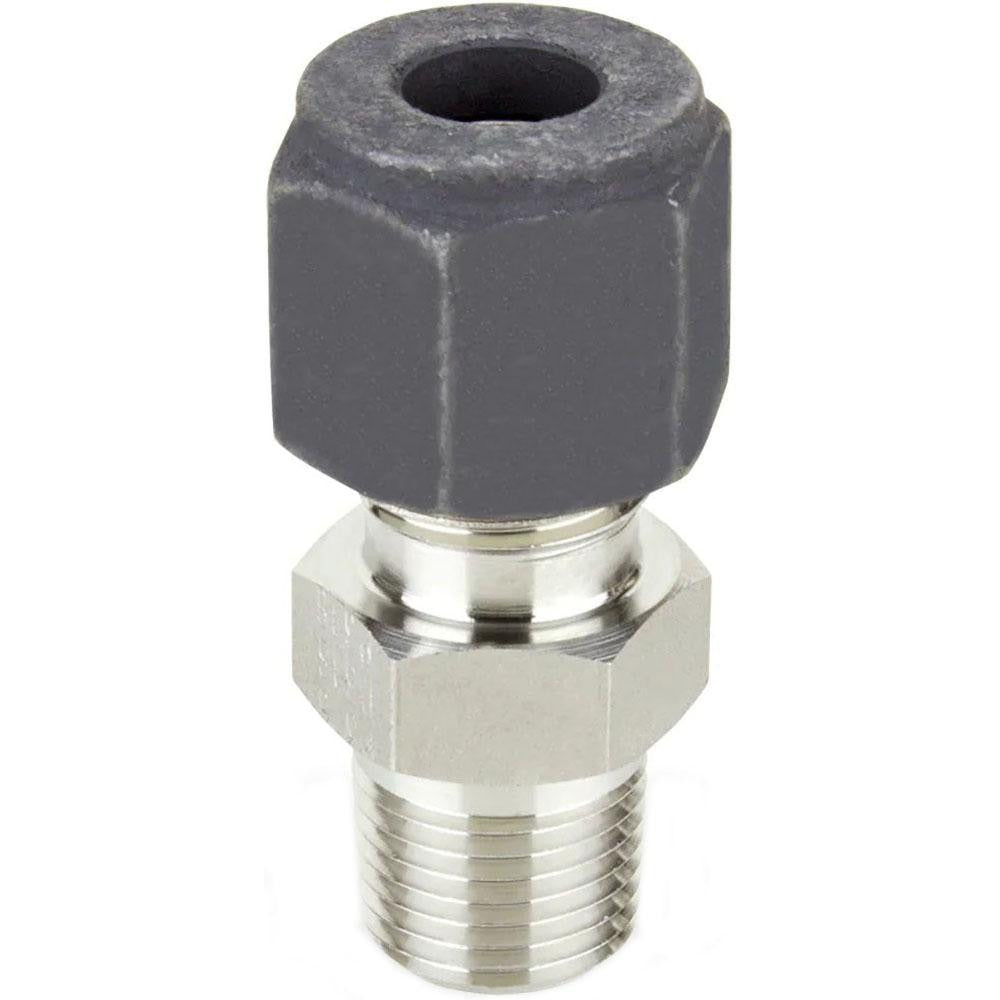

Parker 10-8 Fbz-ss Compression Connector 1/2 Inch Npt Ss

Product Description

The PARKER 10-8 FBZ-SS is a stainless steel compression tube connector designed to join compressed tubing to a male NPT threaded port. It features a 1/2-inch NPT thread size with a compression-to-MNPT end configuration, making it a reliable mechanical fitting for high-pressure fluid and gas line applications. With a maximum working pressure of 6100 psi and an overall length of 1.93 inches, this connector suits demanding service environments where corrosion resistance and leak-tight performance are required. It is installed by licensed plumbers, pipefitters, and HVAC technicians working on instrumentation, process, or utility piping systems.

This compression tube connector is suited for residential and commercial plumbing, HVAC refrigerant lines, pneumatic systems, and instrumentation tubing applications where a secure, reusable compression connection to a male NPT port is needed. The stainless steel construction makes it appropriate for corrosive or high-purity service environments. It is sold individually and is commonly used in single-fitting replacements or new system assemblies where NPT-threaded ports interface with compression tubing runs.

Key Features

• Stainless steel construction provides corrosion resistance for demanding service environments
• Maximum working pressure of 6100 psi supports high-pressure fluid and gas applications
• Compression x MNPT end connections allow direct interface between compression tubing and NPT-threaded ports
• 1/2-inch NPT thread size conforms to standard NPT thread specifications
• Overall length of 1.93 inches suits compact installation spaces
• Sold as a single unit for precise quantity purchasing

Compatibility

Designed as an OEM-style replacement or new-installation compression connector for systems utilizing 1/2-inch NPT-threaded male ports with compression tubing interfaces in plumbing, HVAC, and instrumentation applications.

Installation Notes

Installation should be performed by a qualified plumber, pipefitter, or HVAC technician. Depressurize and isolate the line completely before removing or installing any compression fitting. Ensure tubing is cut cleanly and squarely and that the compression sleeve seats properly before tightening the fitting nut. Follow applicable IPC and local piping codes for pressure ratings and material compatibility in the intended service environment.
