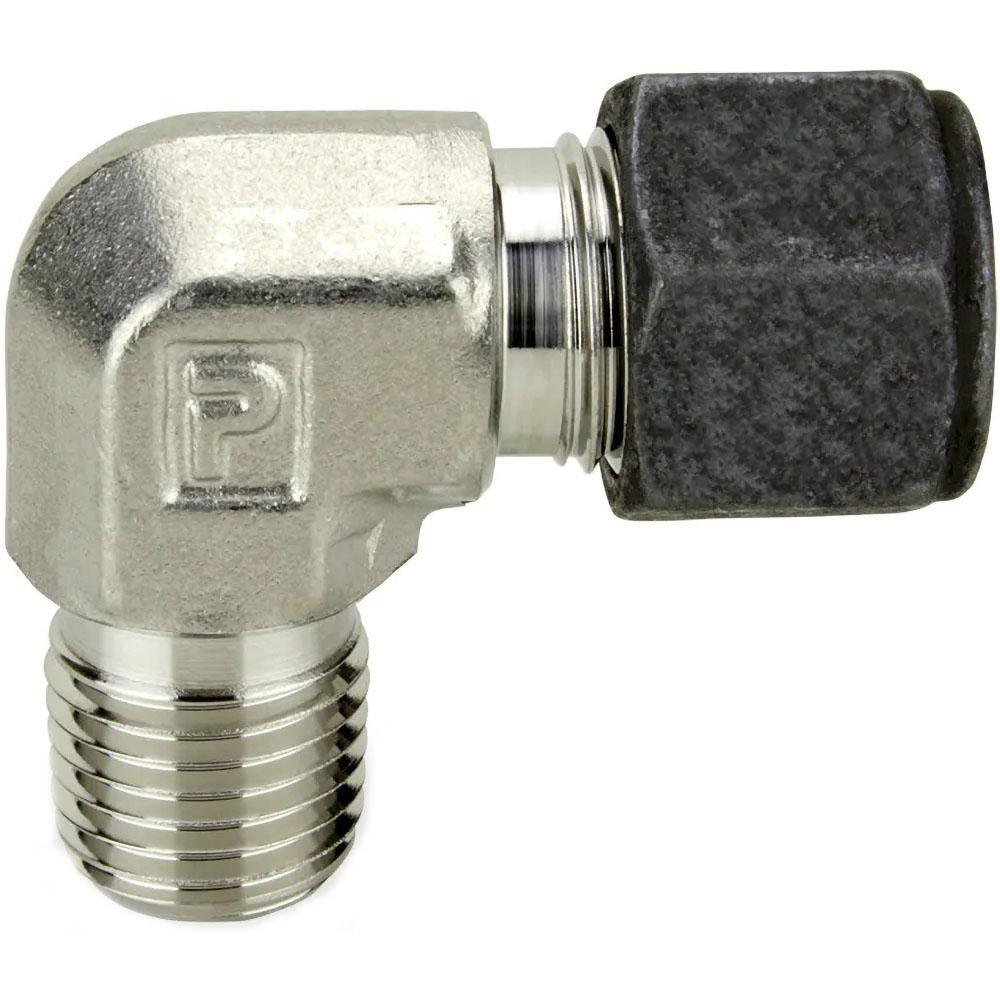

Parker 10-8 Cbz-ss Compression Male Elbow 1/2 in Mnpt Ss

Product Description

The PARKER 10-8 CBZ-SS is a compression tube male elbow fitting machined from stainless steel. It connects tubing to a male NPT threaded port, changing flow direction at 90 degrees within a plumbing, instrumentation, or fluid-system assembly. The fitting uses a compression-style end for the tube side and a 1/2 inch MNPT thread on the male end. With a maximum working pressure rating of 6100 psi, this fitting is suited for high-pressure service lines. Plumbers, pipefitters, and instrumentation technicians install this type of fitting where a rigid tube must terminate at a threaded male connection in a confined or angled routing path.

This fitting is appropriate for use in hydraulic lines, pneumatic systems, chemical process tubing, and general industrial fluid service where stainless steel corrosion resistance is required. The compression connection accommodates standard tubing without the need for soldering or flaring, making it a practical choice for field installations and service work in tight spaces or on live systems that require minimal heat or flame.

Key Features

• Stainless steel construction for corrosion resistance in harsh or wet environments
• Compression x MNPT end connections allow tool-accessible, no-solder tube termination
• 1/2 inch MNPT thread for direct connection to standard NPT-threaded ports
• Maximum working pressure of 6100 psi rated for high-pressure fluid and gas service
• 90-degree male elbow geometry routes tubing where straight fittings cannot fit

Compatibility

Designed as an OEM-style compression tube fitting for use in industrial, instrumentation, and mechanical systems requiring a 1/2 inch MNPT male elbow with compression tube inlet.

Installation Notes

Installation should be performed by a licensed plumber, pipefitter, or qualified instrumentation technician. De-pressurize and isolate the system completely before removing or installing any compression fitting. Ensure tubing is cut square, deburred, and fully seated before tightening the compression nut. Follow applicable codes such as ASME B31.1 or B31.3 for pressure piping systems when determining installation requirements.
