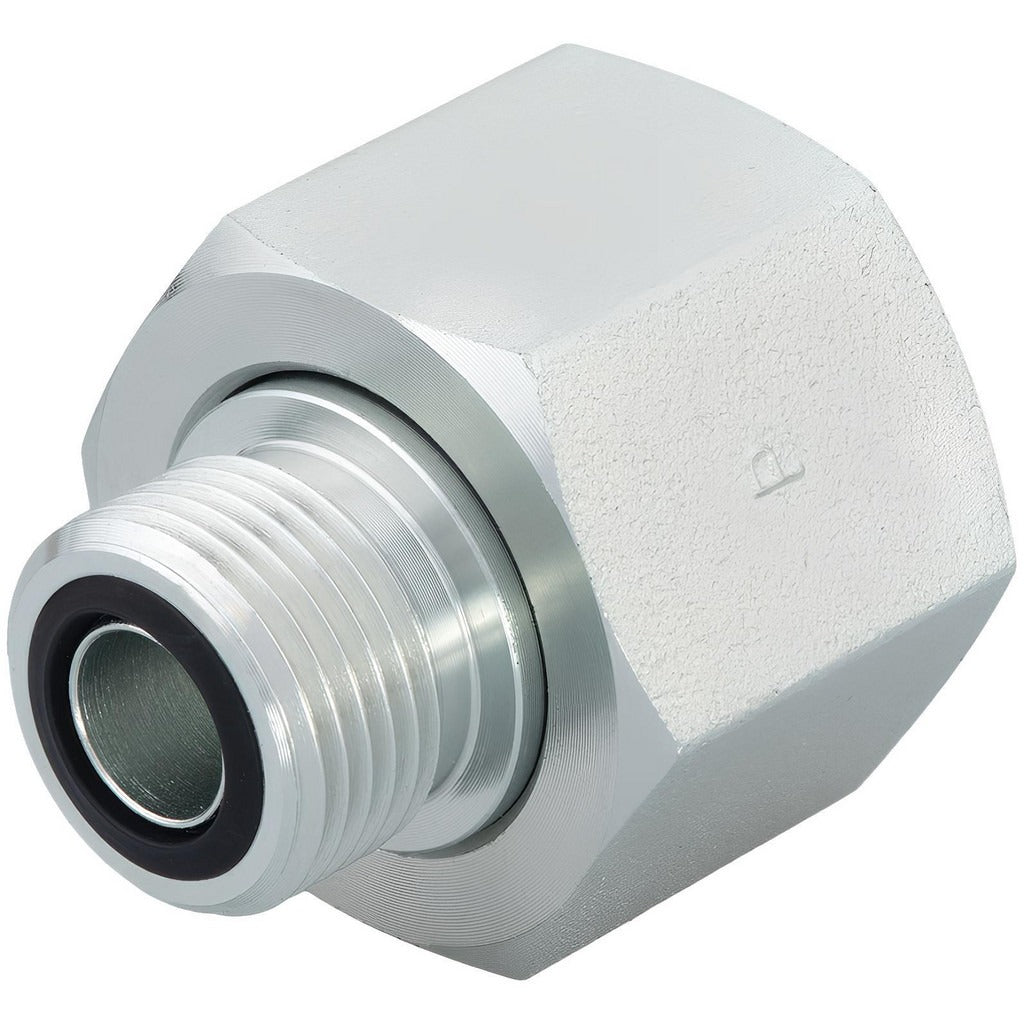

Parker 10-6 Trlon-s Tube End Reducer Orfs 5/8 X 3/8 in

Product Description

The PARKER 10-6 TRLON-S is a compression tube end reducer with an O-Ring Face Seal (ORFS) end connection, constructed from steel. This fitting reduces tubing from a 5/8-inch outside diameter to a 3/8-inch outside diameter and is rated for a maximum working pressure of 6000 psi. It uses UNF thread standards and the ORFS interface to provide a leak-free seal in high-pressure hydraulic and fluid power systems. Licensed technicians and pipefitters install this fitting where tube-to-port connections must maintain integrity under demanding pressure cycles. The steel construction delivers durability in industrial and mobile equipment environments.

This tube end reducer is used in hydraulic plumbing applications across industrial machinery, mobile equipment, and fluid power circuits. It is suited for both OEM assembly and field service work where a reduction in tube outside diameter is required at an ORFS port connection. Typical install scenarios include hydraulic lines on construction equipment, agricultural machinery, and industrial manufacturing systems where high-pressure tube routing changes in size.

Key Features

• Reduces tube outside diameter from 5/8 inch to 3/8 inch for inline size transitions
• O-Ring Face Seal (ORFS) end connection minimizes leak paths in high-pressure service
• Rated to 6000 psi maximum working pressure
• UNF thread standard for compatibility with standard hydraulic port fittings
• Steel construction for strength and durability in demanding fluid power environments

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic and fluid power systems using O-Ring Face Seal connections with UNF threads at 5/8-inch and 3/8-inch tube outside diameters.

Installation Notes

Installation is typically performed by licensed hydraulic technicians or pipefitters. Depressurize and fully isolate the hydraulic circuit before removing or installing any fittings. Inspect the O-ring sealing surface for nicks or contamination prior to assembly, and ensure the face seal O-ring is properly seated before torquing. Follow the fitting manufacturer's assembly guidelines and applicable fluid power standards for proper installation practice.
