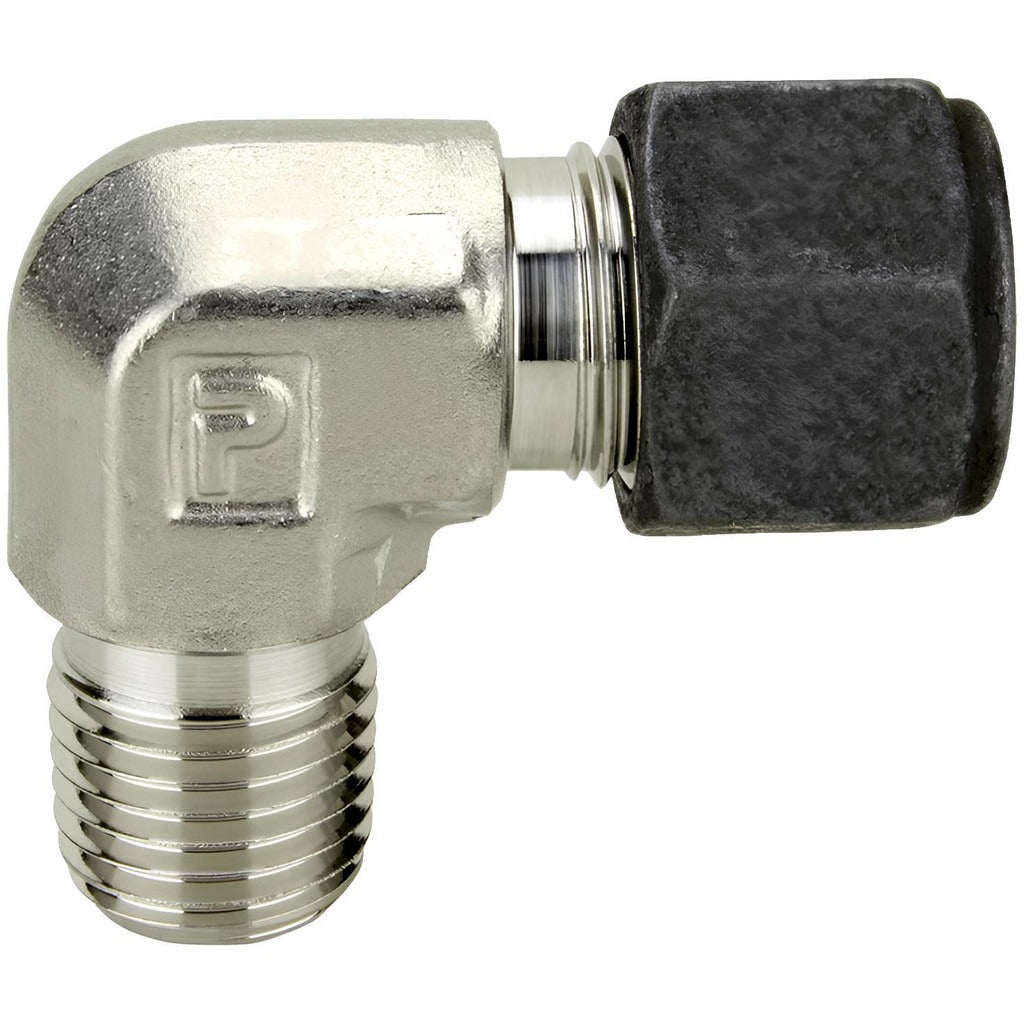

Parker 10-6 Cbz-ss Compression Male Elbow 5/8 Od Ss

Product Description

The PARKER 10-6 CBZ-SS is a compression tube male elbow fitting manufactured in stainless steel. It connects 5/8-inch outside diameter tubing to a male NPT threaded port at a 90-degree angle, changing direction in a compressed fluid or gas line without requiring flared or welded ends. The compression end grips the tube mechanically for a secure, leak-resistant seal. Rated to 6100 psi maximum working pressure, this fitting is suited for high-pressure instrumentation, hydraulic, or pneumatic tubing systems. Plumbers, pipefitters, and instrumentation technicians install this fitting wherever a directional change is needed at a threaded port connection.

This fitting is designed for use in industrial and commercial fluid systems where stainless steel construction is required for corrosion resistance or material compatibility. Typical applications include instrumentation tubing, process piping, pneumatic control lines, and hydraulic systems. The male NPT thread end connects directly to female-threaded ports on valves, manifolds, or equipment bodies. The 5/8-inch compression end accepts standard 5/8-inch OD tubing without soldering or flaring, making it a practical choice for field installations and panel assemblies.

Key Features

• Stainless steel construction provides corrosion resistance for demanding environments
• 5/8-inch OD compression end accepts standard tubing without flaring or welding
• Male NPT thread end connects to female-threaded ports on valves and equipment
• 6100 psi maximum working pressure rating supports high-pressure system requirements
• 90-degree elbow configuration allows direction changes in tight or confined spaces

Compatibility

Designed as an OEM-style fitting for use in compression tube systems requiring a 5/8-inch OD compression inlet and a male NPT threaded outlet at a 90-degree angle.

Installation Notes

Installation should be performed by a licensed pipefitter, plumber, or qualified instrumentation technician familiar with compression fitting assembly practices. Depressurize and isolate the system completely before removing or installing any fittings. Follow the fitting manufacturer's assembly instructions for proper ferrule seating and thread engagement. Apply appropriate thread sealant to the NPT end per job specifications and applicable piping codes.
