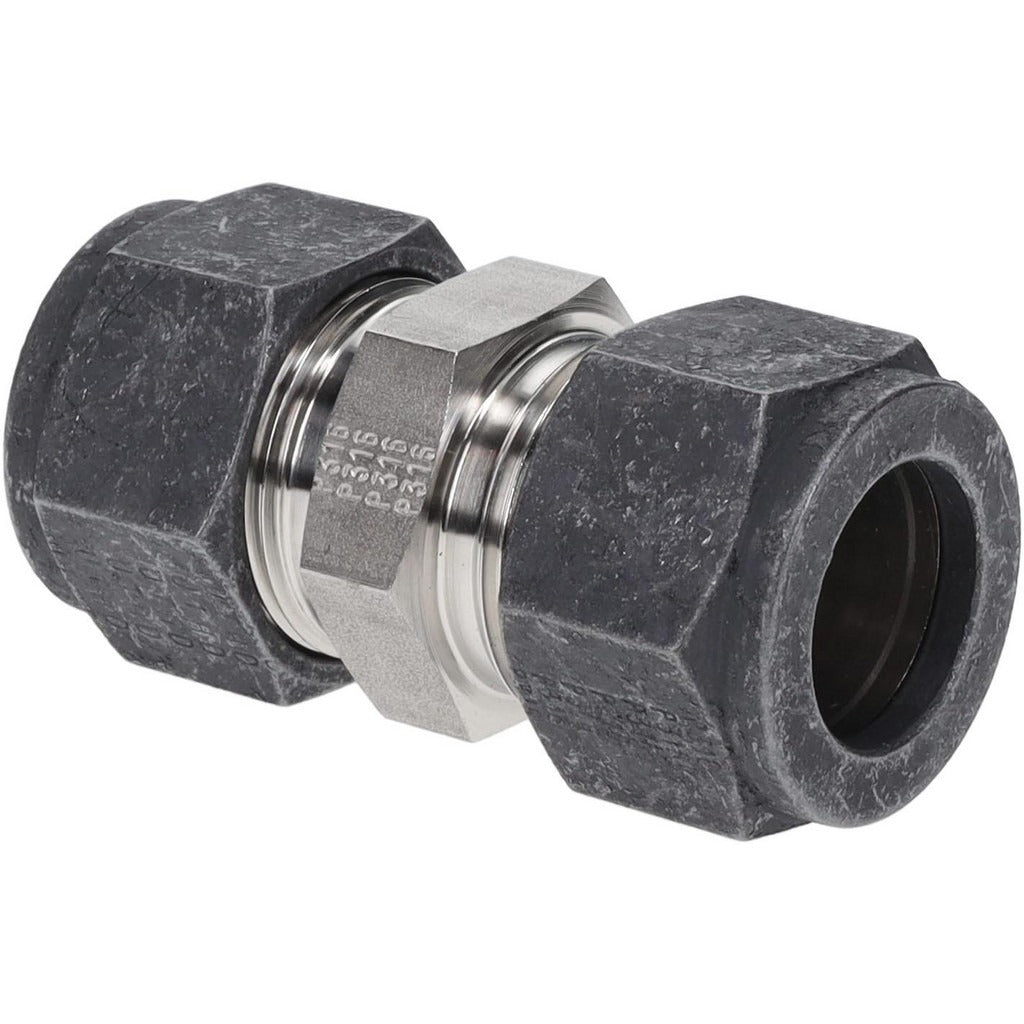

Parker 10-10 Hbz-ss Compression Tube Union 5/8 in Ss

Product Description

The PARKER 10-10 HBZ-SS is a compression tube union fitting machined from stainless steel for joining two lengths of tubing with a 5/8 inch outside diameter. It uses compression-style end connections on both sides, eliminating the need for welding or brazing during assembly. Rated to 6100 psi maximum working pressure, this union is built for demanding fluid and instrumentation systems where leak integrity and corrosion resistance are critical. Licensed plumbers, pipefitters, and instrumentation technicians typically install this fitting in high-pressure tubing runs across industrial, HVAC, and process piping applications.

This fitting is suited for compression tubing systems operating at elevated pressures in both commercial and industrial environments. Typical install scenarios include instrument tubing lines, hydraulic sensing circuits, and high-pressure fluid transfer systems where stainless steel is specified for corrosion resistance or cleanliness requirements. The 5/8 inch tube outside diameter and NPT thread standard make it compatible with standard compression tubing configurations commonly found in process, refrigeration, and mechanical systems.

Key Features

• Stainless steel construction for corrosion resistance in harsh or wet environments
• Compression x compression end connections on both sides for tool-assisted, weld-free assembly
• 6100 psi maximum working pressure rating for high-pressure fluid and instrumentation lines
• 5/8 inch tube outside diameter accommodates standard tubing in compression fitting systems
• NPT thread standard for compatibility with common instrumentation and plumbing hardware

Compatibility

Designed as an OEM-style replacement or direct-fit union for compression tubing systems using 5/8 inch outside diameter tubing with NPT thread standard connections.

Installation Notes

Installation is typically performed by licensed pipefitters, plumbers, or instrumentation technicians. Depressurize and isolate the tubing line completely before disassembling any existing fittings. Use appropriate tubing cutters and deburring tools to ensure a clean, square tube end before seating into the compression fitting. Follow applicable codes such as ASME B31.3 for process piping or local mechanical codes when installing in pressurized systems.
