Parker 1 Mro-s Street Tee 1 Inch Mnptf X Fnptf

Product Description

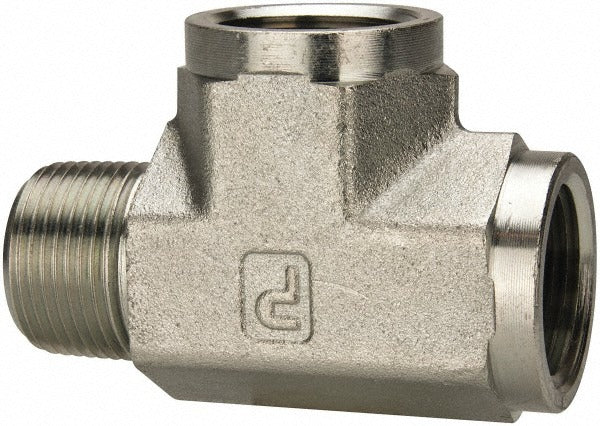

The PARKER 1 MRO-S is a zinc-plated steel industrial pipe street tee designed for threaded pipe assemblies in commercial and industrial fluid systems. It combines a 1-inch male NPT fitting (MNPTF) with a 1-inch female NPT fitting (FNPTF) in a tee configuration, allowing a branch connection to be made in line with existing pipe runs. Rated to a maximum working pressure of 1,800 psi, this fitting is built for demanding service conditions. Plumbers, pipefitters, and maintenance technicians install this type of fitting when routing compressed air, hydraulic, or water supply lines where a directional branch is needed without adding a separate coupling.

This street tee is suited for industrial maintenance, repair, and operations (MRO) applications across manufacturing facilities, mechanical rooms, and utility piping systems. The MNPTF x FNPTF thread configuration allows it to thread directly into a female-threaded port or fitting on one end while accepting a male-threaded pipe or component on the other, reducing the need for additional adapters in tight spaces. It is appropriate for use in both new construction and retrofit piping work where a compact tee connection is required.

Key Features

• 1-inch MNPTF x FNPTF thread configuration for direct in-line branch connections
• Maximum working pressure of 1,800 psi for high-pressure industrial service
• Zinc-plated steel construction for corrosion resistance in MRO environments
• Street tee design reduces fitting count by combining male and female ends in one body
• UNSPSC Code 40175305 for procurement and catalog classification

Compatibility

Designed as an OEM-style replacement or MRO-grade fitting for industrial threaded pipe systems using 1-inch MNPTF x FNPTF connections rated for high-pressure service.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter following applicable codes such as the IPC or ASME B31 piping standards. Depressurize and isolate the pipe system fully before removing or installing any threaded fittings. Apply an appropriate thread sealant or PTFE tape to the male threads before assembly — do not over-tighten, as this can crack the fitting body or damage threads. Verify that the system working pressure does not exceed the 1,800 psi rating of this fitting after installation.
