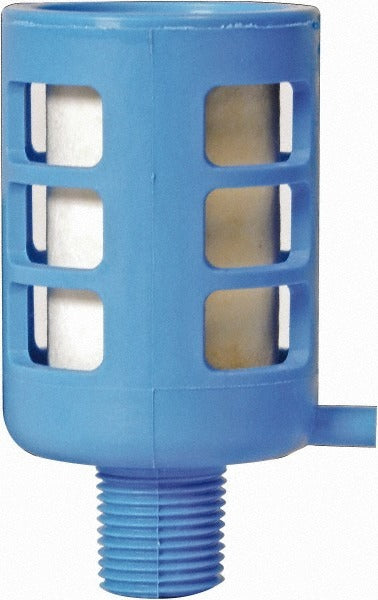

Parker 1/9955-12-371H Exhaust Compressed Air Filter

Product Description

The PARKER 1/9955-12-371H is an exhaust compressed air filter designed to remove contaminants from compressed air systems at the exhaust stage. It features a 1/2 inch NPT inlet connection and a 1/4 inch NPT drain port, making it suitable for inline installation on pneumatic exhaust lines. The unit measures 6 inches in length, 4 inches in width, and 7 inches in height, and weighs 1 pound. This filter is typically installed by industrial maintenance technicians and pneumatic system specialists working on compressed air distribution and exhaust management systems.

This exhaust air filter is used in compressed air systems where clean, controlled exhaust is required. It is well-suited for industrial and commercial pneumatic applications where exhaust air must be filtered before being vented to atmosphere. The 1/2 inch NPT end connections allow for straightforward integration into standard compressed air piping. The 1/4 inch drain port supports manual or automatic condensate removal during service intervals.

Key Features

• 1/2 inch NPT end connections for standard compressed air line integration
• 1/4 inch NPT drain port for condensate removal
• Compact footprint: 6 inches long, 4 inches wide, 7 inches tall
• Lightweight construction at 1 pound
• Designed for exhaust-side compressed air filtration

Compatibility

Designed as an OEM-style replacement or direct-fit component for compressed air systems utilizing 1/2 inch NPT exhaust line connections.

Installation Notes

Installation should be performed by a qualified industrial or pneumatic systems technician. Depressurize the compressed air system fully before removing or installing any filter components. Use appropriate thread sealant on NPT connections and verify all fittings are leak-free before returning the system to service. Consult applicable OSHA and local compressed air safety codes prior to installation.
