Parker 1/8 Cd-s 90 Deg Street Elbow Mnptf X Fnptf 5000 Psi

Product Description

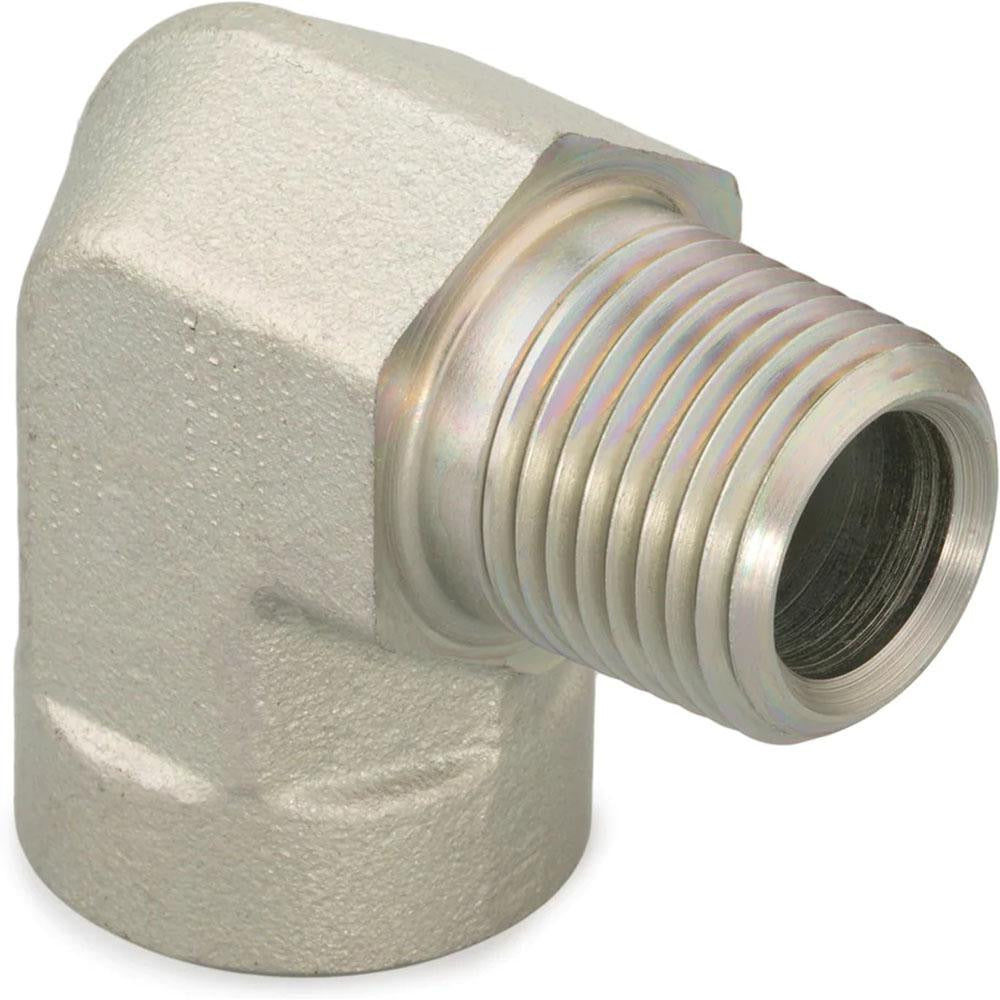

The PARKER 1/8 CD-S is a 90-degree street elbow designed for industrial pipe and instrumentation systems where high-pressure performance and compact routing changes are required. Constructed from zinc-plated steel, it connects a 1/8-inch male NPTF thread to a 1/8-inch female NPTF thread, allowing a direction change directly off a fitting or port without a separate nipple. The zinc plating provides corrosion resistance suitable for general industrial environments. With a maximum working pressure of 5,000 psi, this elbow handles demanding hydraulic, pneumatic, and fluid-power applications. Licensed plumbers, pipefitters, and hydraulic technicians install this fitting in compressed-air, lubrication, and fluid-control line assemblies.

This street elbow is suited for use in compact manifold assemblies, instrumentation panels, and industrial machine plumbing where space is limited and a 90-degree change of direction is needed at a threaded port. The MNPTF x FNPTF thread form provides a pressure-tight mechanical seal when used with the appropriate thread sealant or PTFE tape. It is appropriate for both light industrial and high-pressure process applications where 1/8-inch NPT ports are the specified connection standard.

Key Features

• 90-degree street elbow geometry eliminates the need for a separate nipple at a threaded port
• 5,000 psi maximum working pressure rated for demanding hydraulic and pneumatic service
• Zinc-plated steel construction provides corrosion resistance in general industrial environments
• 1/8-inch MNPTF x FNPTF connection on both ends for standard NPT port compatibility
• Compact 1/8-inch size suitable for instrumentation, manifold, and machine plumbing applications

Compatibility

Designed as an OEM-style replacement or new-installation fitting for industrial pipe systems using 1/8-inch MNPTF and FNPTF threaded connections rated to 5,000 psi.

Installation Notes

Installation should be performed by a licensed pipefitter or qualified technician in accordance with applicable codes and the system pressure rating. Depressurize and isolate the system completely before removing or installing any fitting. Apply an appropriate thread sealant or PTFE tape to the male threads before assembly; do not apply sealant to the first one or two threads. Do not over-torque, as steel NPTF fittings can crack or distort at excessive torque, and the thread taper provides the primary seal.
