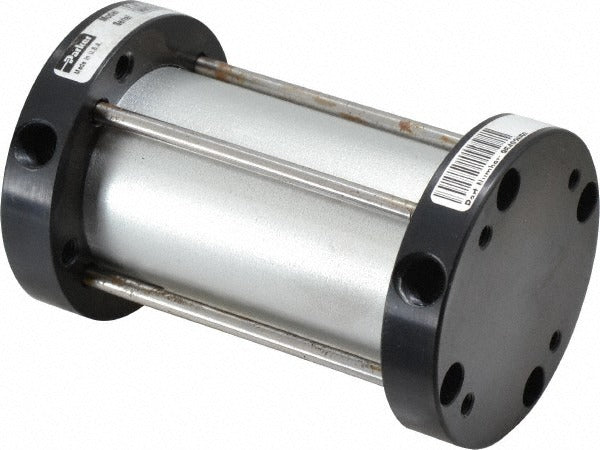

Parker 1.50NLPR92.00 Rodless Air Cylinder 1.5 in Bore 2 in

Product Description

The PARKER 1.50NLPR92.00 is a single acting rodless air cylinder designed for pneumatic linear motion applications in industrial and automation environments. Built with a steel and aluminum body, it features a 1.5 inch bore and a 2 inch stroke, making it well suited for compact actuator installations where a traditional rod-style cylinder would exceed available space. The port is sized at 1/8 NPT for straightforward connection to standard pneumatic supply lines. Nitrile butadiene rubber (NBR) seals provide reliable performance across a broad range of operating conditions. Licensed pneumatic technicians and automation maintenance professionals are the typical installers.

This cylinder fits industrial automation, assembly line, and machine control applications where rodless linear travel in a compact envelope is required. The head or cap mounting style allows flexible positioning within a machine frame or fixture. A 3/8-24 female rod thread accommodates standard pneumatic hardware. With an overall length of 4.141 inches and a package weight of 0.63 pounds, the unit is a lightweight, drop-in component for new builds and replacement installations alike.

Key Features

• Single acting pneumatic operation for simplified circuit design
• 1.5 inch bore diameter for moderate force output at standard shop air pressures
• 2 inch stroke length in a compact 4.141 inch overall body length
• 1/8 NPT port for direct connection to standard pneumatic fittings
• Steel and aluminum construction with NBR seals for durability
• Head or cap mount style supports multiple installation orientations

Compatibility

Designed as an OEM-style replacement or new-installation pneumatic actuator for industrial machinery and automation systems requiring a single acting rodless cylinder with a 1.5 inch bore and 2 inch stroke.

Installation Notes

Installation should be performed by a qualified pneumatic systems technician. Depressurize and lock out the pneumatic supply before removing or installing the cylinder. Verify port alignment and use appropriate thread sealant on the 1/8 NPT port connection to prevent air leaks. Confirm the mounting hardware is rated for the cylinder operating pressure before putting the assembly back into service.
