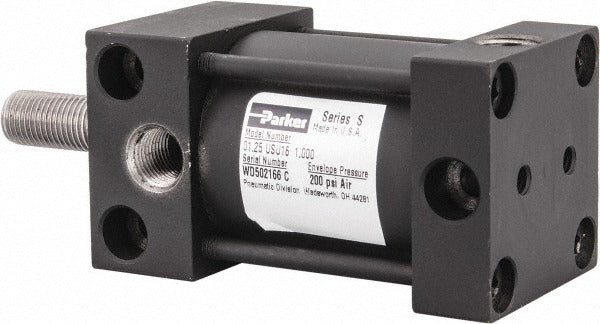

Parker 1.25USU1601.00 Air Cylinder 1.25 in Bore 200 Psi

Product Description

The PARKER 1.25USU1601.00 is a double acting rodless air cylinder designed for pneumatic linear motion applications in industrial and automation systems. With a 1.25-inch bore and a 1-inch stroke, it delivers controlled bidirectional actuation powered by compressed air. The cylinder body is constructed from steel, aluminum, and stainless steel, offering corrosion resistance and durability in demanding environments. Nitrile butadiene rubber (NBR) seals provide reliable performance across a wide range of operating conditions. Maximum working pressure is rated at 200 psi. Installation is handled by qualified pneumatic system technicians or maintenance mechanics familiar with compressed air circuit assembly.

This cylinder suits compact pneumatic actuator applications in light industrial machinery, automated assembly equipment, and similar systems requiring short-stroke linear motion. The universal mount style allows flexible orientation and positioning during integration. The 1/8 NPTF port accepts standard pneumatic fittings for straightforward plumbing into existing compressed air circuits. The male rod end thread size of 3/8-24 accommodates common pneumatic rod end accessories. The overall unit length of 3.870 inches makes it well suited for space-constrained installations.

Key Features

• Double acting operation for bidirectional force and precise motion control
• 1.25-inch bore with 1-inch stroke for compact linear actuation
• 200 psi maximum working pressure rating
• Stainless steel, steel, and aluminum construction for corrosion resistance and structural strength
• NBR seals for reliable sealing performance in standard pneumatic service
• Universal mount style and 1/8 NPTF port for flexible system integration

Compatibility

Designed as an OEM-style replacement or direct-fit component for pneumatic linear motion systems requiring a double acting air cylinder with a 1.25-inch bore, 1-inch stroke, universal mount, and 1/8 NPTF porting at up to 200 psi.

Installation Notes

Installation should be performed by a qualified pneumatic technician or maintenance mechanic. Depressurize and lock out the compressed air supply completely before removing or installing any cylinder. Verify that all fittings, tubing, and port connections meet the rated pressure requirements of the system before returning to service. Follow applicable industry standards and equipment manufacturer guidelines for pneumatic circuit assembly and mounting torque.
