Parker 1/2 Mmo-s Female Tee 1/2 in Fnptf 3000 Psi

Product Description

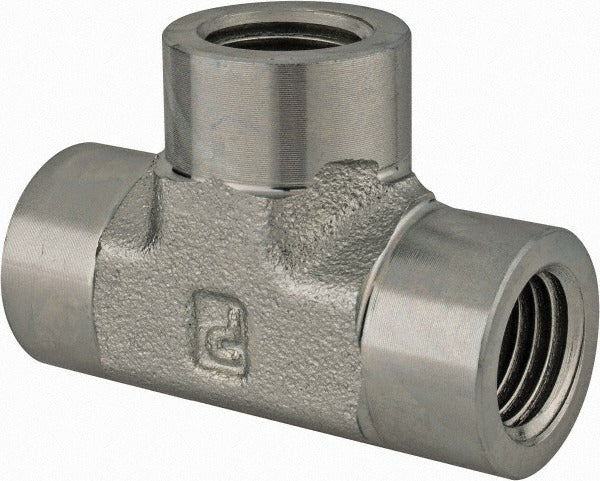

The PARKER 1/2 MMO-S is a female tee fitting designed for industrial pipe systems requiring reliable, high-pressure connections. Built from zinc-plated steel, this fitting handles a maximum working pressure of 3000 psi, making it suitable for demanding hydraulic and pneumatic plumbing applications. The tee configuration accepts 1/2 inch female threads on all three ports using FNPTF (Female National Pipe Taper Fuel) connections, creating a leak-resistant seal when mated with compatible male NPT fittings. Licensed plumbers, pipefitters, and industrial maintenance technicians install this type of fitting when branching a pipeline into two directions without welding or special tooling.

This fitting is used in industrial and commercial pipe systems where a branch connection is needed in a pressurized line. Typical applications include hydraulic fluid lines, compressed air distribution, fuel supply systems, and general industrial plumbing where steel construction and a 3000 psi pressure rating are required. The zinc-plated finish provides a degree of corrosion resistance suited for indoor mechanical rooms and light industrial environments. It is sold individually and is appropriate for both new installation and maintenance replacement work.

Key Features

• Maximum working pressure of 3000 psi for high-pressure industrial service
• 1/2 inch FNPTF threads on all three ports for standard tapered pipe thread connections
• Zinc-plated steel construction for strength and corrosion resistance
• Tee shape allows a single pipeline to branch into two directions
• Compact fitting suitable for tight mechanical spaces

Compatibility

Designed as an OEM-style replacement or new-installation fitting for industrial pipe systems using 1/2 inch male NPT threaded connections rated for up to 3000 psi service.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter in accordance with applicable codes such as the IPC or IFGC depending on the medium being conveyed. Depressurize and isolate the line completely before removing any existing fitting or installing this tee. Apply thread sealant or PTFE tape to the mating male threads per the sealant manufacturer instructions before assembly. Do not over-torque the connection, as this can damage the threads on either the fitting or the mating component.
