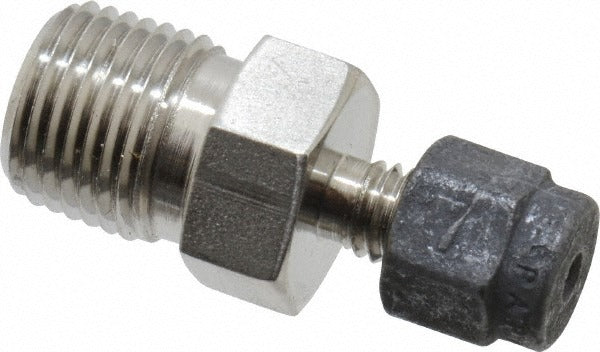

Parker 1-2 Fbz-ss Compression Tube Connector 1/8 in Npt Ss

Product Description

The PARKER 1-2 FBZ-SS is a stainless steel compression tube connector designed to create a leak-tight mechanical joint between a compression tube end and a male NPT threaded port. With a 1/8 inch NPT thread size and a maximum working pressure of 16800 psi, this fitting is built for high-pressure instrumentation and fluid system applications. The overall length is 1.03 inches. Licensed plumbers, pipefitters, and instrumentation technicians install this type of fitting in process, hydraulic, and pneumatic systems where reliable tube-to-thread transitions are required.

This compression-to-MNPT connector is suited for residential and commercial instrumentation lines, HVAC refrigerant sensing circuits, hydraulic control systems, and industrial fluid handling applications. The compression end accepts tubing and creates a secure seal without soldering or welding, making it practical for field installations and tight service spaces. It is a single-piece fitting sold individually.

Key Features

• Stainless steel construction for corrosion resistance in harsh fluid and gas environments
• Compression x MNPT end connections for reliable tube-to-threaded-port transitions
• Maximum working pressure rated to 16800 psi for high-pressure system compatibility
• 1/8 inch NPT thread size for common instrumentation and control line fittings
• Compact overall length of 1.03 inches for use in confined spaces
• No soldering or welding required — mechanical compression seal

Compatibility

Designed as an OEM-style compression tube connector for instrumentation, hydraulic, pneumatic, and fluid system applications requiring a 1/8 inch NPT male threaded port with a compression tube inlet.

Installation Notes

Installation should be performed by a licensed pipefitter, plumber, or instrumentation technician. Depressurize and isolate the line completely before removing or installing any compression fitting. Hand-tighten the compression nut onto the fitting body, then advance with a wrench per standard compression fitting practice — do not overtighten, as this can deform the ferrule and compromise the seal. Verify system pressure is within the rated working pressure of the fitting before returning the line to service.
