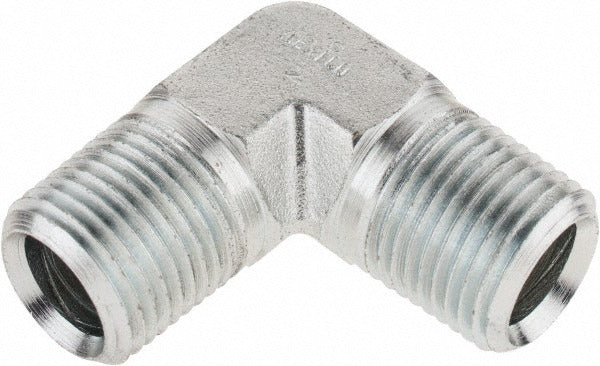

Parker 1/2 Cr-s 90 Deg Male Elbow 1/2 in Mnptf 6000 Psi

Product Description

The PARKER 1/2 CR-S is a 90-degree male elbow fitting designed for high-pressure industrial pipe assemblies. It features a 1/2-inch male MNPTF (Dryseal Male National Pipe Tapered Fuel) thread connection and is rated to 6000 psi maximum working pressure. This fitting is used to route piping at a right angle in compressed air, hydraulic, or fluid distribution systems where a leak-free, pressure-rated connection is required. Installation is typically performed by licensed pipefitters, plumbers, or industrial maintenance technicians working on high-pressure fluid or gas lines.

This elbow fitting is suited for industrial and commercial applications requiring a 90-degree directional change in a threaded pipe run. The MNPTF thread form provides a pressure-tight seal without relying on sealant alone, making it appropriate for demanding service environments. It is commonly installed in manufacturing facilities, mechanical rooms, and heavy equipment systems where pressure integrity and tight-space routing are priorities.

Key Features

• 90-degree male elbow configuration for right-angle pipe routing
• 1/2-inch MNPTF thread connection for pressure-tight dryseal fitment
• 6000 psi maximum working pressure rating for high-pressure service
• Compact form factor suited for tight mechanical spaces
• Industrial classification meeting UNSPSC 40175305 for pipe fitting applications

Compatibility

Designed as an OEM-style replacement or new-installation fitting for industrial pipe systems using 1/2-inch MNPTF threaded connections rated to 6000 psi service conditions.

Installation Notes

Installation should be performed by a qualified pipefitter or licensed plumber in accordance with applicable mechanical codes. De-pressurize and isolate the line completely before removing or installing any threaded fittings. MNPTF dryseal threads are engineered to seal on the thread form itself, but thread sealant tape or compound may be used per the system designer's specification. Do not over-torque the fitting, as this can distort the thread form and compromise the seal.
