Parker 1-1 Cbz-ss Compression Male Elbow 1/16 in Ss

Product Description

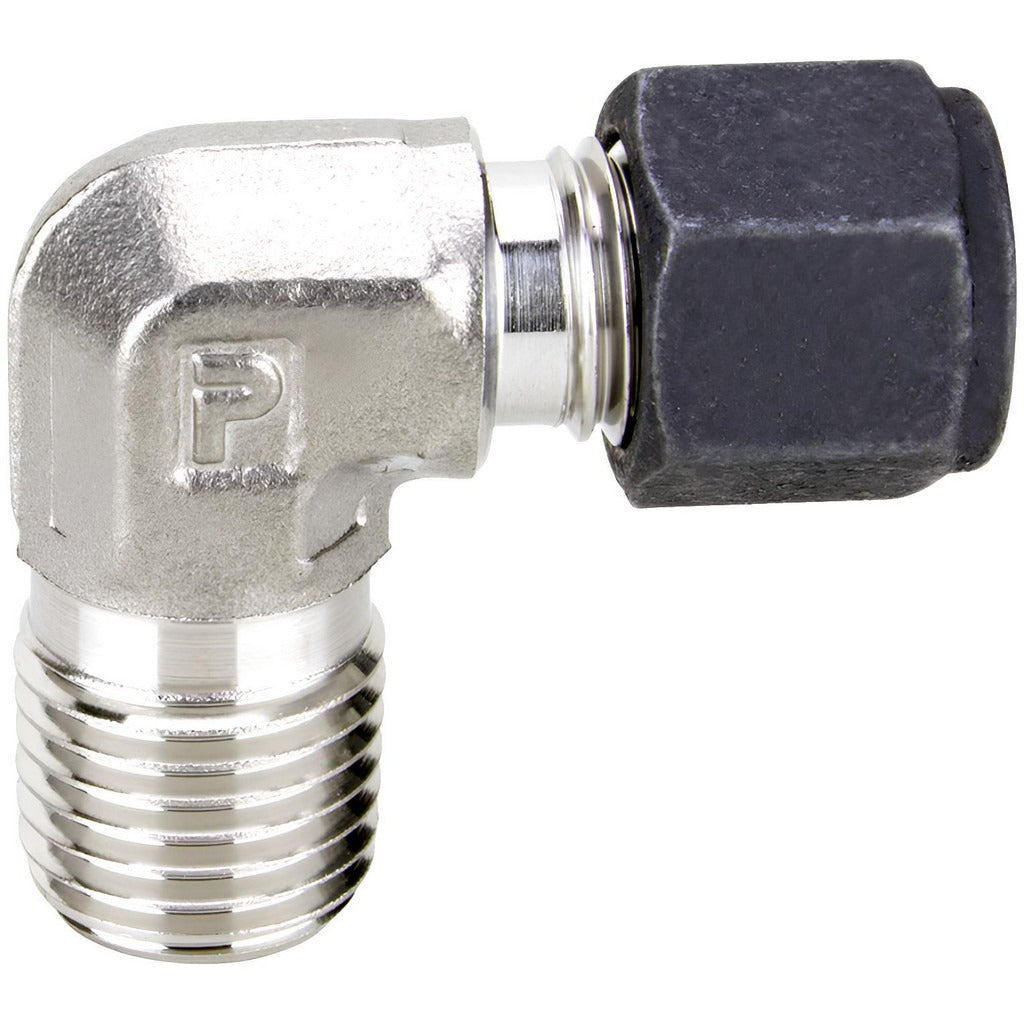

The PARKER 1-1 CBZ-SS is a compression tube male elbow fitting machined from stainless steel. It connects a compression tube end to a male NPT threaded port in a 90-degree configuration, making direction changes in instrumentation and fluid-handling lines straightforward. The tube outside diameter is 1/16 inch, and the fitting is rated for a maximum working pressure of 16,800 psi. That pressure rating makes it well suited for high-pressure instrumentation, hydraulic sensing, and analytical systems where joint integrity is critical. Plumbers, pipefitters, and instrumentation technicians working on high-pressure process lines or test equipment install this type of fitting regularly.

This fitting is designed for use in high-pressure instrumentation tubing systems, process control lines, and hydraulic or pneumatic sensing circuits. The small 1/16 inch tube OD is common in analytical instrument plumbing, gas sampling systems, and laboratory or industrial process equipment where compact, leak-tight connections are required. The compression-to-MNPT configuration allows direct interface with standard NPT-ported valves, manifolds, gauges, and bulkhead fittings without additional adapters.

Key Features

• Maximum working pressure of 16,800 psi suits high-pressure instrumentation and hydraulic sensing applications
• Stainless steel construction provides corrosion resistance in demanding process environments
• Compression x MNPT end connections allow direct transition from tube to NPT-ported components
• 1/16 inch tube outside diameter fits compact instrumentation tubing commonly used in analytical and process systems
• 90-degree male elbow configuration enables direction changes without additional fittings

Compatibility

Designed as an OEM-style compression tube fitting for high-pressure instrumentation and process tubing systems using 1/16 inch OD tubing with standard NPT-ported components.

Installation Notes

Installation should be performed by a qualified pipefitter or instrumentation technician familiar with high-pressure tubing systems. Depressurize and isolate the line completely before removing or installing any compression fitting. Ensure tube ends are cut square, deburred, and clean before seating into the compression body. Verify NPT thread engagement meets applicable code requirements and do not overtighten, as stainless compression fittings can gall if excessive force is applied.
