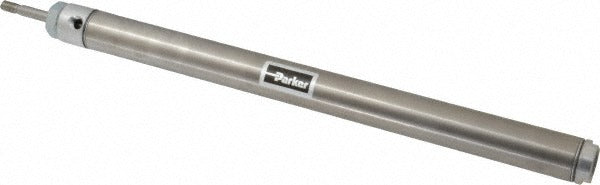

Parker 1.06DSRM12.00 Rodless Air Cylinder 1-1/16 Bore 12 Stroke

Product Description

The PARKER 1.06DSRM12.00 is a double acting rodless air cylinder designed for pneumatic linear motion applications in industrial automation, manufacturing, and machine assembly environments. Built with a stainless steel body, this cylinder operates at up to 250 psi and features a 1-1/16 inch (1.06 inch decimal) bore with a 12 inch stroke length. The front nose mount style allows for straightforward inline installation in space-constrained fixtures. Pneumatic technicians and industrial maintenance mechanics are the primary installers. The nitrile butadiene rubber seals provide reliable performance across standard pneumatic service conditions.

This cylinder is suited for light-to-medium duty linear actuation tasks where a conventional rod-style cylinder cannot be accommodated due to space limitations. Typical applications include slide units, pick-and-place assemblies, conveyor diverters, and positioning fixtures in both OEM machine builds and field replacement scenarios. The 1/8 NPTF port threads to standard pneumatic fittings and tubing commonly found in compressed air distribution systems. The 5/16-24 male rod thread on the external carriage allows direct attachment of tooling, brackets, or end effectors.

Key Features

• Double acting operation provides powered extension and retraction for positive control in both directions
• Stainless steel body construction resists corrosion in wash-down and moderate chemical exposure environments
• 250 psi maximum working pressure compatible with standard industrial compressed air systems
• 1/8 NPTF port accepts common pneumatic fittings without thread sealant incompatibility concerns
• Front nose mount style simplifies inline machine frame installation
• Nitrile butadiene rubber seals rated for standard air service across a broad temperature range

Compatibility

Designed as an OEM-style replacement or new-installation rodless pneumatic cylinder for industrial automation systems requiring a 1-1/16 inch bore, 12 inch stroke, front nose mount configuration with 1/8 NPTF porting.

Installation Notes

Installation should be performed by a qualified pneumatic technician or industrial maintenance mechanic. Depressurize and lock out the compressed air supply before removing an existing cylinder or mounting this unit. Verify that supply pressure does not exceed 250 psi at any point in the circuit. Ensure all port fittings are rated for the operating pressure and that the mounting surface can support the cylinder body and load forces generated at full stroke.
