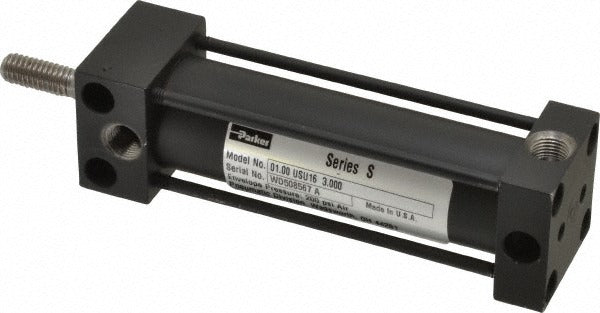

Parker 1.00USU1603.00 Air Cylinder 1 in Bore 3 in Stroke

Product Description

The PARKER 1.00USU1603.00 is a double acting rodless air cylinder built for pneumatic motion control applications in industrial and automation systems. With a 1 inch bore, 3 inch stroke, and a maximum working pressure of 200 psi, this cylinder delivers reliable linear actuation in compact installations. The body is constructed from steel, aluminum, and stainless steel, with nitrile butadiene rubber seals for durability across a range of operating conditions. A 1/8 NPTF port allows straightforward air line connection. Licensed HVAC, mechanical, and industrial automation technicians routinely specify this cylinder for machine tooling, conveyor, and assembly line actuator positions.

This cylinder is suited for light-duty to medium-duty pneumatic actuation in both stationary and mobile industrial equipment. Its universal mount style allows flexible positioning in tight or unconventional machine frames. The 5/16-18 male rod thread and 5.870 inch overall length make it a practical fit for retrofit and OEM applications alike. It is commonly installed in automated assembly equipment, packaging machinery, and industrial tooling where a compact double acting cylinder is required.

Key Features

• Double acting design provides powered extension and retraction for reliable two-direction actuation
• 1 inch bore and 3 inch stroke for compact, precise linear motion
• 200 psi maximum working pressure rated for demanding pneumatic circuits
• 1/8 NPTF port for secure, leak-resistant air line connection
• Universal mount style accommodates flexible installation orientations
• Stainless steel and aluminum construction with nitrile butadiene rubber seals for corrosion and wear resistance

Compatibility

Designed as an OEM-style replacement or direct-fit component for pneumatic systems requiring a double acting rodless air cylinder with a 1 inch bore and universal mount configuration.

Installation Notes

Installation should be performed by a qualified pneumatic or mechanical technician. Depressurize and lock out all air supply lines before removing or fitting the cylinder. Verify that port connections are wrench-tight using appropriate thread sealant rated for compressed air service. Confirm the operating pressure of the pneumatic circuit does not exceed the 200 psi maximum rating of this cylinder before returning the system to service.
