Parker 0F Pneumatic Hose Coupling 1/2 in Tru-flate Mnpt

Product Description

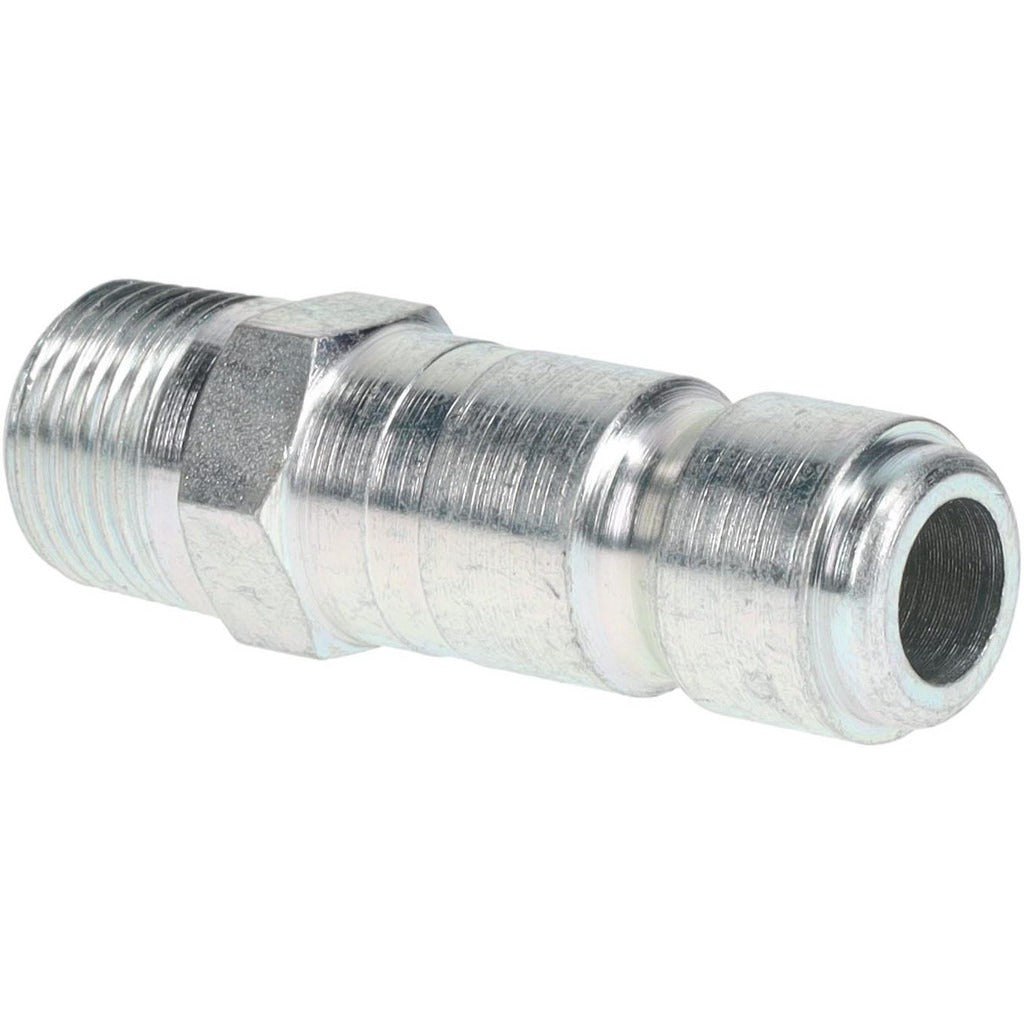

The PARKER 0F is a pneumatic hose coupling connector designed for use in compressed air systems requiring a Tru-Flate Automotive interchange connection. Built from steel with a zinc chromate finish, this Series 10 connector features a 1/2 inch body diameter and a 3/8-18 MNPT threaded connection. It handles a maximum working pressure of 300 psi and operates across a temperature range of -40 degrees F to 250 degrees F. The 0F is a standard field-replacement coupling installed by HVAC technicians, industrial mechanics, and pneumatic system service professionals.

This connector is suited for residential and light commercial compressed air tool hookups, pneumatic control lines, and shop air systems that use Tru-Flate Automotive interchange couplings. The threaded MNPT connection allows direct installation into standard NPT-ported equipment, manifolds, hoses, and air tools. Its compact overall length of 2.33 inches and 0.69 inch hex size make it practical for installations in tight access areas.

Key Features

• Tru-Flate Automotive interchange type for broad compatibility with Tru-Flate style couplings
• 3/8-18 MNPT threaded connection for standard NPT ported equipment
• 300 psi maximum working pressure for typical shop and field air systems
• Operating range of -40 degrees F to 250 degrees F
• Steel construction with zinc chromate finish for corrosion resistance
• Overall length of 2.33 inches with a 0.69 inch hex size for wrench access

Compatibility

Designed as an OEM-style replacement connector for compressed air systems using Tru-Flate Automotive interchange couplings with 3/8-18 MNPT threaded connections.

Installation Notes

Installation is performed by HVAC technicians, plumbers, or industrial mechanics familiar with compressed air systems. Depressurize and isolate the air line completely before removing or installing any coupling. Apply thread sealant appropriate for pneumatic service to the MNPT threads before assembly. Verify the system does not exceed 300 psi working pressure after reconnection.
