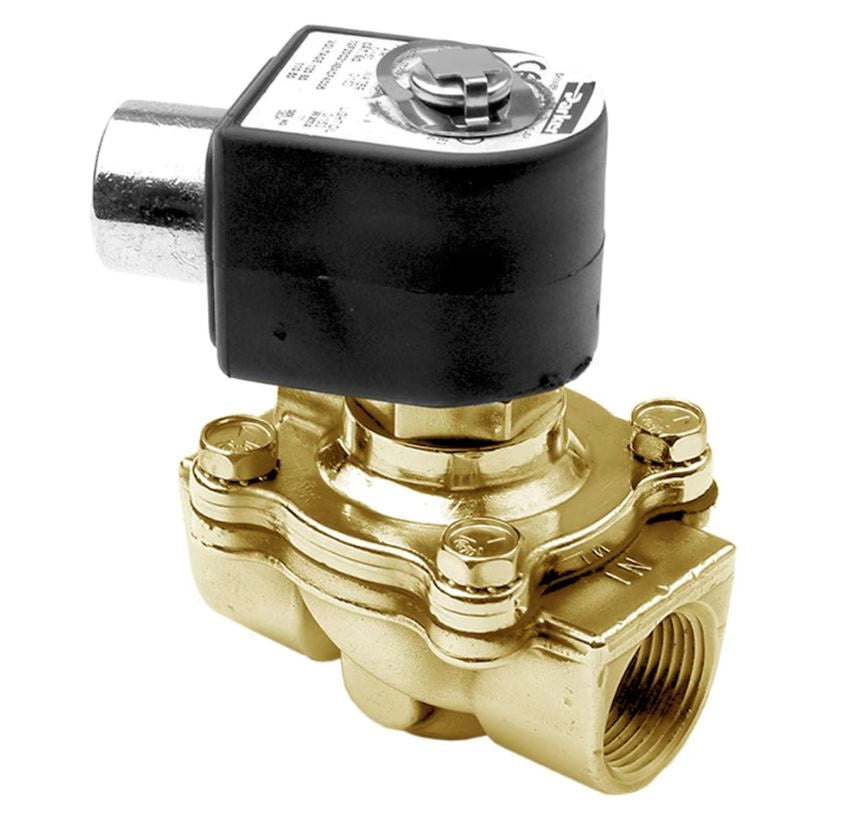

PARKER 08F23O2140ACF4C05 2-Way Solenoid Valve Power 1/2 inch NPT

Product Description

The Parker 08F23O2140ACF4C05 is a 2-way solenoid valve engineered for flow control in various applications, including air, water, light oil, and inert gases. This valve operates in a normally open configuration, making it suitable for systems where continuous flow is required until activated.

• 2-way normally open design for effortless operation.
• Constructed with a brass body and NBR seals for durability.
• Compatible with a 1/2 inch NPT connection for easy installation.

Product Highlights

The internal pilot operation enhances the reliability of the valve in everyday usage. It is rated for pressures from zero to one hundred fifty PSI, suitable for a variety of industrial applications.

Product Information

Standard Information

• Brand: Parker
• MPN: 08F23O2140ACF4C05

Technical Specifications

• Valve Type: 2-Way
• Function: Normally Open
• Port Size: 1/2 inch
• Port Type: NPT
• Input Voltage: 110/50-120/60 VAC
• Body Material: Brass
• Seal Material: NBR
• Orifice Size: 5/8 inch
• Flow Factor: 4 Cv
• Power Consumption: 11 W
• Maximum Pressure Differential: 150 psi
• Minimum Pressure Differential: 0 psi
• Maximum Fluid Temperature: 150 degrees F
• Minimum Fluid Temperature: 0 degrees F
• Media: Air, Water, Light Oil, Inert Gas
• Enclosure: NEMA 4, 4X
• Electrical Connection: 18 inch Leads
• Coil Insulation Class: Class F
• Industry Standards: UL Listed, CSA Certified
• Actuation: Internal Pilot Operated
• Configuration: Normally Open
