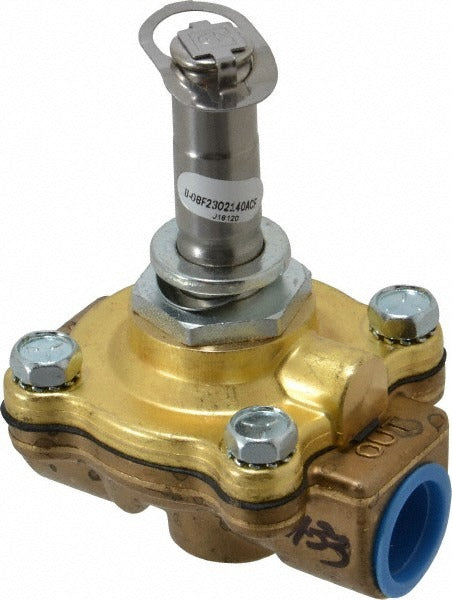

Parker 08F23O2140ACF 2-way Solenoid Valve 1/2 in Npt

Product Description

The PARKER 08F23O2140ACF is a two-way piloted diaphragm solenoid valve designed for controlling the flow of fluids, gases, and light oils in industrial and mechanical systems. In its unactuated state, the valve is normally open, allowing flow until the coil is energized. The brass body and NBR seal construction make it suitable for a broad range of media in moderate-temperature service up to 150 degrees F. With a Cv factor of 4.0, a 5/8-inch orifice, and a maximum working pressure of 150 psi, this valve handles demanding flow-control applications. Licensed electricians and mechanical contractors typically install this valve as part of automated fluid or gas control circuits.

This valve is suited for residential and commercial mechanical systems where reliable, normally-open solenoid control is required. Typical applications include fluid handling, gas service, and light-oil systems. The valve accepts multiple coil voltages, including 12 Vdc, 24 Vdc, 24/60 Vac, 120 Vdc, 120/60 to 110/50 Vac, and 240/60 to 220/50 Vac, making it adaptable to a wide range of control circuits. Note that solenoid coils are not included and must be ordered separately to match the intended supply voltage. The ASCO cross-reference number is 8210G34.

Key Features

• Normally open two-way piloted diaphragm configuration maintains flow until energized
• Brass body construction with NBR seal for compatibility with fluids, gases, and light oils
• 1/2-inch NPT port with 5/8-inch orifice and Cv rating of 4.0 for strong flow capacity
• Rated to 150 psi maximum working pressure and 150 degrees F maximum temperature
• Compatible with a wide voltage range across AC and DC supply options
• CSA Certified, UL Listed, and NEMA 4X rated for use in wet or wash-down environments

Compatibility

Designed as an OEM-style replacement or direct-install two-way solenoid valve for fluid, gas, and light-oil control systems requiring a 1/2-inch NPT normally open valve. Cross-references to ASCO number 8210G34.

Installation Notes

Installation should be performed by a licensed electrician or qualified mechanical contractor familiar with solenoid valve wiring and piping codes. De-energize the control circuit and isolate the supply line before beginning installation. Ensure the selected coil voltage matches the available control supply before ordering coils separately, as coils are not included with this valve. Follow applicable NEC and local mechanical codes for wiring and piping connections.
