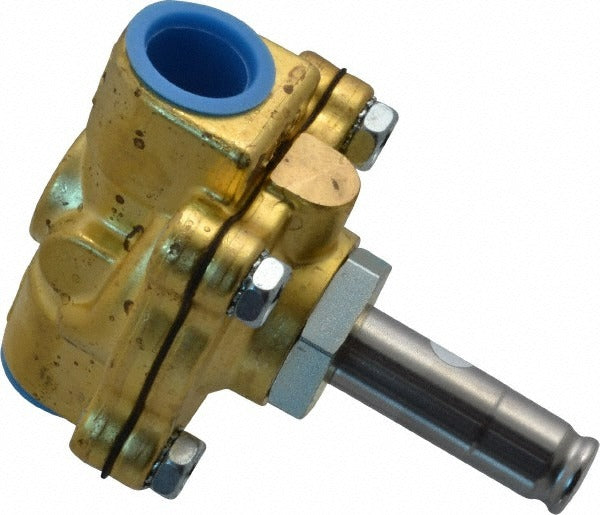

Parker 08F22C2140ADF 2-way Solenoid Valve 1/2 Inch Npt

Product Description

The PARKER 08F22C2140ADF is a two-way, piloted diaphragm solenoid valve designed for controlling the flow of fluids, gases, and light oils in industrial and mechanical systems. The valve ships in a normally closed configuration, meaning flow is blocked when the coil is de-energized. The brass body and NBR seal deliver solid resistance to a broad range of media, and the valve supports multiple voltage inputs including 12 Vdc, 24 Vdc, 24/60 Vac, 120 Vdc, 120/60 to 110/50 Vac, and 240/60 to 220/50 Vac. With a maximum working pressure of 300 psi and a Cv factor of 4.0, this valve suits demanding flow-control applications where reliable shutoff is required.

This valve is suited for residential and commercial installations wherever automated flow control of compatible media is needed. Typical applications include HVAC systems, compressed air lines, water systems, and light oil circuits. The 1/2 inch NPT port connects directly to standard threaded pipe. A minimum operating pressure differential of 5 psi is required for proper piloted-diaphragm operation, making it appropriate for pressurized system lines rather than gravity-feed or low-pressure circuits.

Key Features

• Two-way normally closed piloted diaphragm design — flow blocked when de-energized
• 1/2 inch NPT port with 5/8 inch orifice and Cv rating of 4.0 for reliable flow capacity
• Multi-voltage compatible: 12 Vdc, 24 Vdc, 24/60 Vac, 120 Vdc, 120/60 to 110/50 Vac, 240/60 to 220/50 Vac
• Brass body with NBR seal rated for fluids, gases, and light oils
• Maximum working pressure of 300 psi and maximum temperature of 175 degrees F
• CSA Certified, UL Listed, and NEMA 4X rated for wet and washdown environments
• Coil included; operating wattage of 16 watts

Compatibility

Rated for use with fluids, gases, and light oils. ASCO cross-reference number 8210G7. Verify minimum operating pressure differential of 5 psi and media compatibility with NBR seal material before installation.

Installation Notes

Installation should be performed by a licensed plumber, pipefitter, or qualified mechanical technician familiar with pressurized fluid and gas systems. Shut off system pressure and de-energize all electrical circuits before beginning work. Ensure the selected voltage supply matches the coil specification before wiring. Note that solenoid coils are available separately and must be ordered to match the desired operating voltage if a replacement coil is needed.
