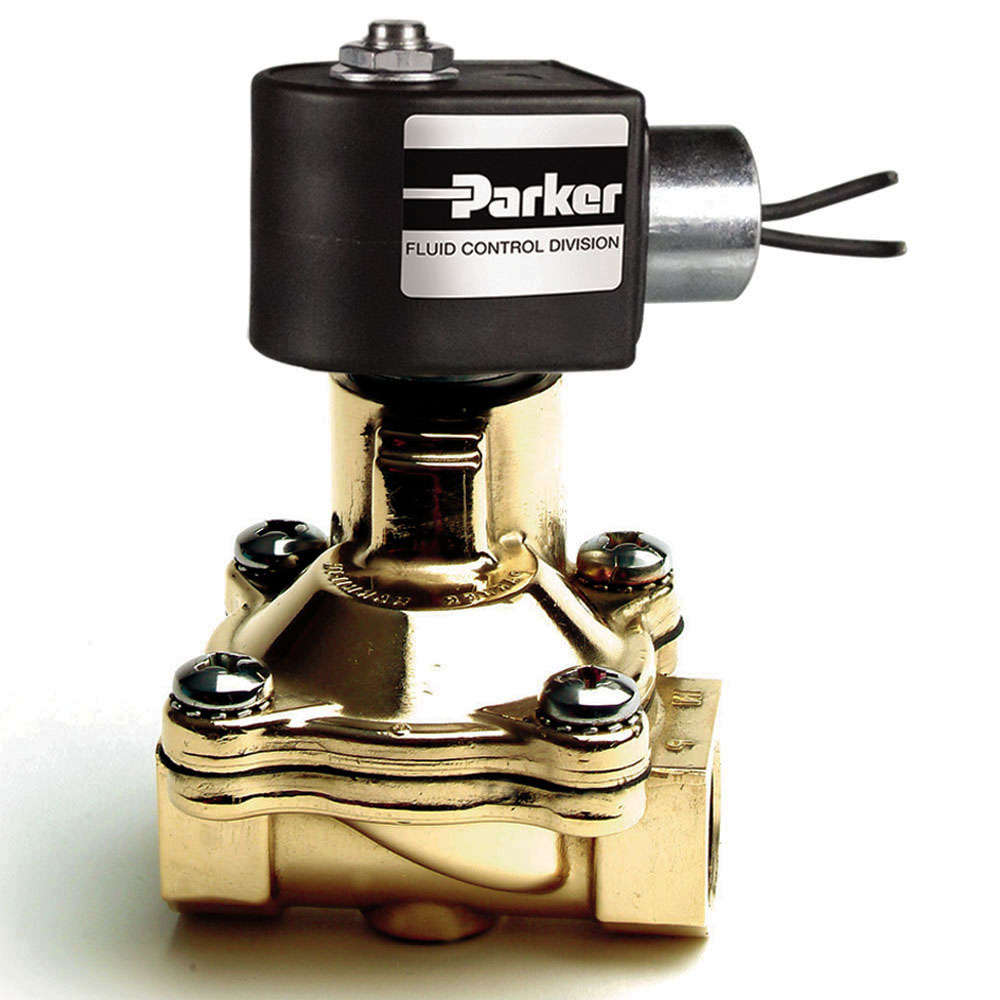

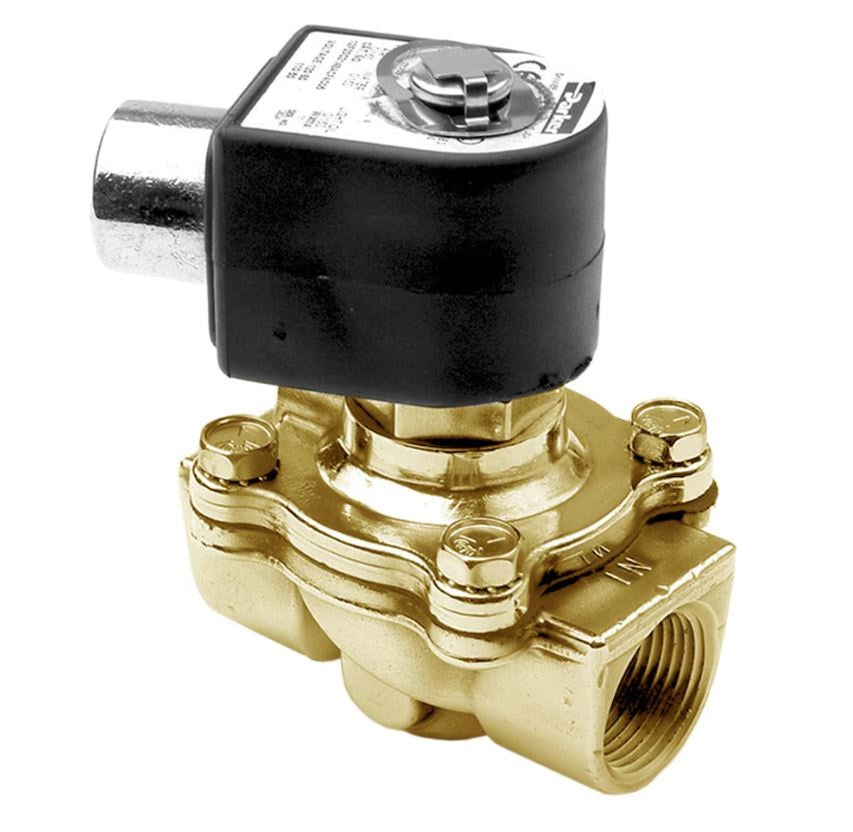

PARKER 08F22C2140A3F4C80 2-Way Solenoid Valve

Product Description

The PARKER 08F22C2140A3F4C80 is a 2-way solenoid valve suitable for general-purpose applications, including air, liquids, and gases. It operates in a normally closed state, equipped with a half-inch NPT port. The valve body is made of brass, paired with NBR seals for effective sealing. This product is piloted by a center diaphragm and is effective with a minimum pressure differential of five psi and a maximum of one hundred twenty-five psi.

• Valve Type: 2-Way
• Port Size: 1/2 inch NPT
• Coil Type: 1/2 NPT Conduit with Leads

Product Highlights

Ideal for diverse fluid control needs, this solenoid valve is durable and reliable for various applications.

Product Information

Standard Information

• Series: Gold Ring Series
• Function: Normally Closed

Technical Specifications

• Port Size: 1/2 inch
• Input Voltage: 24.0 VDC
• Body Material: Brass
• Seal Material: NBR
• Orifice Size: 5/8 inch
• Flow Factor (Cv): 4
• Power Consumption: 11.5 W
• Maximum Pressure Differential: 125 psi (DC)
• Actuation Type: Internally Piloted
• Media: General Purpose
• Minimum Pressure Differential: 5.0 psi
• Minimum Fluid Temperature: 0
• Maximum Fluid Temperature: 150.0 °F
• Coil Protection Mode: NEMA 4X
• Ingress Protection Rating: NEMA 4, 4X
• Maximum Ambient Temperature: 77.0 °F
• Specifications Met: UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC
