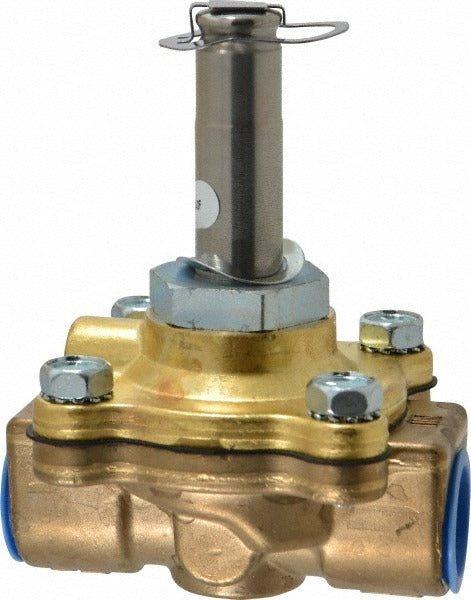

Parker 08F22C2140A3F 2-way Solenoid Valve 1/2 in Npt

Product Description

The PARKER 08F22C2140A3F is a two-way, normally closed, piloted diaphragm solenoid valve designed for control of fluids, gases, and light oils in industrial and mechanical systems. Built with a brass body and NBR seal, the valve accepts multiple coil voltages including 12 Vdc, 24 Vdc, 24/60 Vac, 120 Vdc, 120/60 to 110/50 Vac, and 240/60 to 220/50 Vac, making it adaptable to a wide range of control circuits. The 1/2 inch NPT port and a Cv factor of 4.0 support solid flow capacity for its size class. Maximum working pressure is 125 psi with a minimum operating pressure differential of 5 psi. Weighing 1.5 pounds, this valve is a compact, field-proven component for HVAC, plumbing, and process piping applications.

This valve is suited for residential and light commercial systems where automated fluid or gas shutoff is required. Typical installations include water control, compressed air lines, and light oil circuits. The normally closed design ensures the valve defaults to a closed position on loss of power, which is appropriate for fail-safe control scenarios. The multi-voltage coil compatibility makes it useful across a broad range of control panel configurations. Note that solenoid coils are not included with this valve body and must be ordered separately.

Key Features

• Two-way normally closed piloted diaphragm design for reliable fail-safe shutoff
• Brass body with NBR seal suitable for fluids, gases, and light oils up to 150 degrees F
• 1/2 inch NPT port with Cv rating of 4.0 for adequate flow capacity
• Multi-voltage compatible: 12 Vdc, 24 Vdc, 24/60 Vac, 120 Vdc, 120/60 to 110/50 Vac, 240/60 to 220/50 Vac
• CSA Certified, UL Listed, and NEMA 4X rated for use in wet or wash-down environments
• Solenoid coil not included, allowing coil selection to match existing electrical specifications

Compatibility

Cross-references ASCO Number 8210G2. Designed as an OEM-style replacement or new-install two-way solenoid valve for systems requiring 1/2 inch NPT normally closed piloted diaphragm valve configurations handling fluids, gases, or light oils.

Installation Notes

Installation should be performed by a licensed plumber, HVAC technician, or qualified pipefitter in accordance with applicable local mechanical codes. Shut off system pressure and de-energize the control circuit before removing or installing the valve. Because solenoid coils are not included, verify coil voltage matches the control circuit before ordering a coil. Ensure minimum operating pressure differential of 5 psi is maintained for proper diaphragm actuation.
