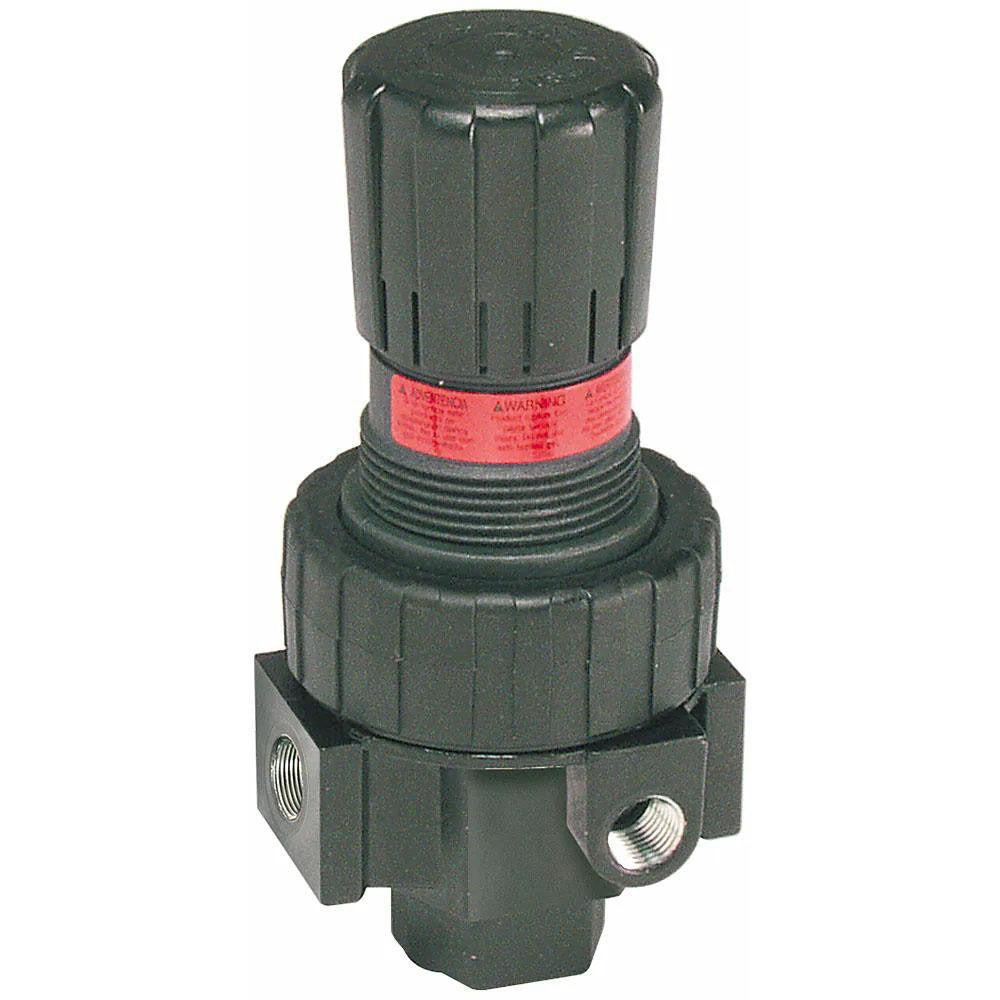

Parker 07R413AC Compressed Air Regulator 90 Cfm 3/4 Npt

Product Description

The PARKER 07R413AC is a standard compressed air regulator designed to control and maintain downstream pressure in pneumatic systems. Built from zinc construction, this regulator handles a maximum supply pressure of 250 psi and delivers up to 90 CFM of airflow. It connects via 3/4 inches NPT end connections and includes a 1/4 inches gauge port thread for optional gauge installation. The pressure range is adjustable from 2 to 125 psi, making it suitable for a broad range of pneumatic tool and equipment applications. Licensed mechanical contractors and industrial maintenance technicians are the primary installers.

This regulator is suited for compressed air service in both commercial and industrial settings. It is commonly installed on pneumatic supply lines feeding tools, actuators, or process equipment where consistent downstream pressure is required. The Series 07R design includes modular connection capability, allowing it to be combined with other modular FRL components for filter-regulator-lubricator assemblies. The built-in relief function vents excess pressure when the outlet is blocked or system demand drops, protecting downstream equipment.

Key Features

• Maximum supply pressure of 250 psi for high-pressure compressed air systems
• Adjustable output range of 2 to 125 psi
• Maximum airflow capacity of 90 CFM
• 3/4 inches NPT end connections for standard pipe thread installations
• Modular connection design compatible with Series 07R FRL components
• Integrated relief function vents pressure when outlet flow is stopped
• Zinc body construction for lightweight, corrosion-resistant service

Compatibility

Designed for use in compressed air systems as part of the Parker Series 07R modular FRL line. Gauge port accepts a 1/4 inches thread gauge if monitoring is required.

Installation Notes

Installation should be performed by a qualified pneumatic or mechanical technician. Depressurize and lock out the air supply before installing or servicing this regulator. Apply appropriate thread sealant to NPT connections and tighten to hand-tight plus standard wrench turns per site practices — do not overtighten zinc-bodied fittings. Verify downstream pressure with a calibrated gauge after startup to confirm the regulator is set within the required operating range.
