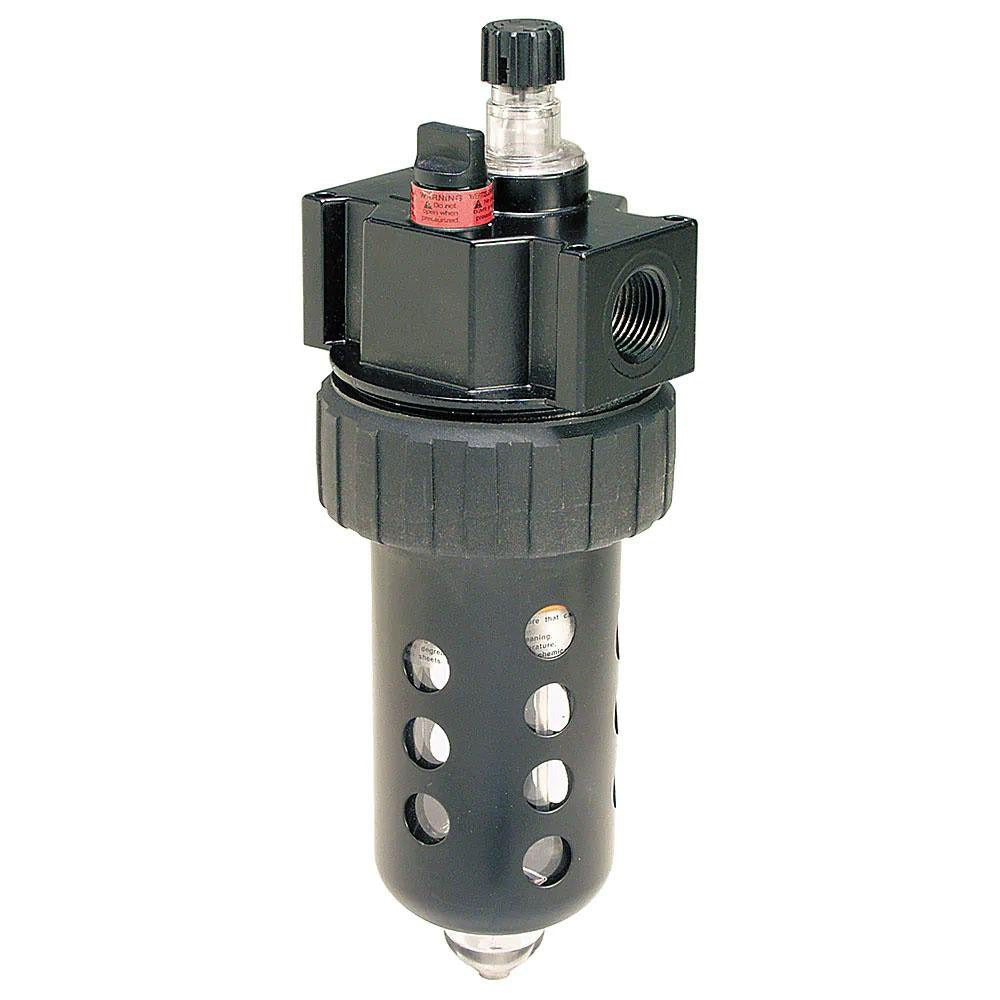

Parker 07L32BE Compressed Air Lubricator 90 Cfm 1/2 Npt

Product Description

The PARKER 07L32BE is a standard mist-type compressed air lubricator designed to deliver metered oil into a compressed air line, protecting downstream pneumatic tools, cylinders, and valves from wear. Built around a zinc body with a polycarbonate bowl, it handles flow rates up to 90 CFM through a 1/2-inch NPT port. The bowl holds 6 oz of lubricant and features a sight glass for quick fluid-level checks without shutting down the line. A metal bowl guard is included for added protection in industrial environments. This unit is part of Parker's Series 07L and is installed by millwrights, industrial maintenance technicians, and plumbing or pneumatic system specialists.

The 07L32BE is suited for use in residential, commercial, and light industrial compressed air systems where consistent tool lubrication is required. Its modular connection design allows it to be combined with compatible Parker Series 07L filters and regulators to form a filter-regulator-lubricator (FRL) assembly. Typical install scenarios include point-of-use pneumatic tool stations, production line air drops, and compressed air distribution panels. The 1/2-inch NPT end connections match common shop air piping sizes. Minimum working temperature is 32 degrees F, making it appropriate for conditioned indoor environments.

Key Features

• Mist-type lubrication delivers consistent oil mist at up to 90 CFM flow capacity
• 1/2-inch NPT port with NPT end connections for direct pipe thread installation
• Zinc body construction for durability in industrial service
• Polycarbonate bowl with metal bowl guard for visibility and impact resistance
• Integrated sight glass allows visual oil-level monitoring without line shutdown
• Modular connection supports inline FRL assembly with compatible Series 07L components
• 6 oz bowl capacity with nitrile seals for compatibility with petroleum-based lubricants

Compatibility

Designed for use in Parker Series 07L modular compressed air treatment systems. Modular connection allows pairing with compatible Series 07L filters and regulators. Consult Parker documentation for specific compatible filter and regulator part numbers.

Installation Notes

Installation should be performed by a qualified pneumatic systems technician or industrial maintenance professional. Depressurize and lock out the compressed air supply before installation or bowl removal. NPT threaded connections require thread sealant tape or compound applied per standard practice. The lubricator should be mounted vertically with the bowl facing down to ensure proper oil feed and sight glass function.
