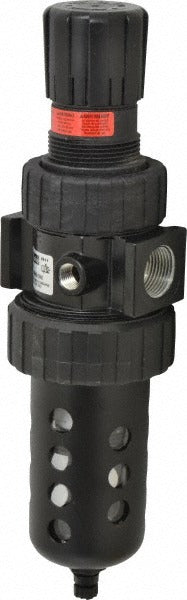

Parker 07E42A13AC Frl Filter Regulator 3/4 Npt 90 Scfm

Product Description

The PARKER 07E42A13AC is a single-piece filter/regulator FRL combination unit designed for compressed air systems in industrial and commercial applications. It filters particulates down to 40 microns while regulating downstream pressure, delivering up to 90 SCFM at a maximum supply pressure of 150 psi. The unit features a polycarbonate bowl with a bowl guard and a manual drain for routine moisture removal. The zinc body and 3/4 NPT end connections make it a durable, straightforward fit for air preparation stations serving pneumatic tools, actuators, and related equipment. Installation is handled by pipefitters, pneumatic technicians, and maintenance mechanics.

This FRL unit is suited for industrial compressed air systems requiring inline filtration and pressure regulation at a single point. The 3/4 NPT port size accommodates moderate to high-flow pneumatic circuits in manufacturing, process, and facility maintenance environments. The modular connection feature allows it to integrate into Parker Series 07E multi-unit air preparation assemblies. With a minimum operating temperature of 32 degrees F and a maximum of 125 degrees F, it is appropriate for standard indoor compressed air service. No pressure gauge is included, but a 1/4-inch gauge port is provided for field installation of a gauge if required.

Key Features

• Single-piece filter/regulator design simplifies air preparation plumbing
• 40-micron filtration rating removes particulates from compressed air supply
• 90 SCFM flow capacity with a 150 psi maximum supply pressure rating
• Polycarbonate bowl with bowl guard for visual fluid level inspection
• Manual drain for scheduled condensate removal
• Modular connection compatible with Parker Series 07E components
• 1/4-inch gauge port for optional field-installed pressure gauge

Compatibility

Designed for use within the Parker Series 07E modular air preparation system, with modular connections supporting multi-unit FRL configurations. Compatible with standard 3/4 NPT compressed air piping.

Installation Notes

Installation should be performed by a qualified pipefitter or pneumatic systems technician. Depressurize and lock out the compressed air supply before installation or service. Apply thread sealant appropriate for compressed air service to all NPT connections and verify for leaks after pressurizing. Orient the unit vertically with the bowl facing down to allow proper condensate collection and manual drain operation.
