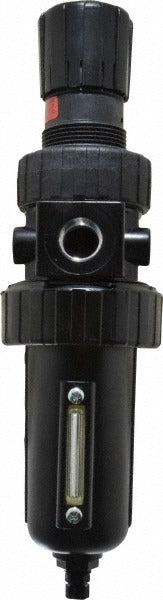

Parker 07E34A13AC Frl Combination Unit 1/2 Npt 90 Scfm

Product Description

The PARKER 07E34A13AC is a single-piece filter/regulator/lubricator (FRL) combination unit designed to condition compressed air at the point of use. This unit integrates filtration and pressure regulation into one compact body, reducing plumbing connections and panel space. It flows up to 90 SCFM through a 1/2 NPT port and handles supply pressures up to 250 psi. The metal bowl with manual drain and 40-micron filter element removes particulate and moisture from the air supply. A sight glass allows visual monitoring of bowl level without disassembly. Licensed HVAC, pneumatic, and industrial maintenance technicians install this unit inline ahead of air-operated equipment.

The 07E34A13AC is suited for industrial and commercial compressed air systems where a single combination unit replaces separate filter and regulator components. It fits inline applications in manufacturing, process control, and mechanical rooms where space is limited and consistent downstream air quality is required. The unit is part of the Parker Series 07E and includes a modular connection feature that allows future expansion. With a lubricator bowl capacity of 7.20 ounces and an operating temperature range of 32 degrees F to 175 degrees F, it handles a broad range of plant environments.

Key Features

• Single-piece filter/regulator configuration reduces installation connections and saves panel space
• 90 SCFM flow capacity through 1/2 NPT end connections
• 250 psi maximum supply pressure rating
• 40-micron filter element removes particulate and water aerosols from compressed air
• Metal bowl with manual drain for durability in industrial environments
• Integrated sight glass allows visual bowl level check without removal
• Modular connection design supports future addition of lubricator or other FRL components

Compatibility

Designed as an OEM-style inline compressed air conditioning unit compatible with 1/2 NPT compressed air systems in the Parker Series 07E FRL product family.

Installation Notes

Installation should be performed by a qualified mechanic or industrial maintenance technician familiar with compressed air systems. Depressurize and lock out the air supply line before installing or servicing this unit. Mount the unit vertically with the bowl oriented downward to ensure proper condensate drainage. Verify that all downstream equipment pressure ratings are compatible with the regulated outlet pressure before returning the system to service.
