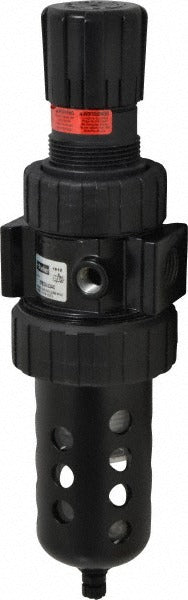

Parker 07E32A13AC Frl Filter Regulator 1/2 Npt 90 Scfm

Product Description

The PARKER 07E32A13AC is a single-piece filter/regulator (FRL) combination unit designed to condition compressed air at the point of use. It filters particulates down to 40 microns while regulating downstream pressure in a single compact body, eliminating the need for separate components. The unit handles up to 150 psi supply pressure and flows up to 90 SCFM, making it suitable for both light industrial and heavy-duty pneumatic applications. The zinc body provides structural durability, while the polycarbonate bowl with integrated bowl guard allows visual monitoring of the liquid level and condensate. A manual drain handles accumulated moisture. Licensed HVAC, plumbing, and industrial technicians working on pneumatic systems are the typical installers.

This unit is suited for compressed air systems requiring inline filtration and pressure regulation in a single-body assembly. The 1/2 NPT end connections make it compatible with standard threaded pneumatic plumbing. The modular connection design supports integration with other Series 07E components. A 1/4 NPT gauge port is included for attaching a downstream pressure gauge, though a gauge is not supplied with the unit. The 7.20-ounce lubricator bowl capacity supports downstream tool lubrication when used in an expanded FRL assembly. Operating temperature range is 32 to 125 degrees F, appropriate for indoor industrial environments.

Key Features

• Single-piece filter/regulator design combines filtration and pressure regulation in one body
• 40-micron filtration rating removes particulates from compressed air supply
• Rated for up to 150 psi supply pressure with 90 SCFM maximum flow
• Polycarbonate bowl with bowl guard allows visual condensate inspection
• Manual drain for controlled condensate removal
• Modular connection supports Series 07E FRL assembly expansion
• 1/4 NPT gauge port for optional downstream pressure gauge installation

Compatibility

Designed for use in Series 07E modular FRL assemblies with 1/2 NPT threaded compressed air lines. Modular connection allows pairing with other compatible Series 07E components such as lubricators or additional regulators.

Installation Notes

Installation should be performed by a qualified pneumatic or industrial maintenance technician. Depressurize and lock out the compressed air supply completely before installing or servicing this unit. Ensure the unit is mounted in the correct airflow orientation as indicated on the body. Consult applicable OSHA and ANSI compressed air safety standards when integrating into a pneumatic system.
