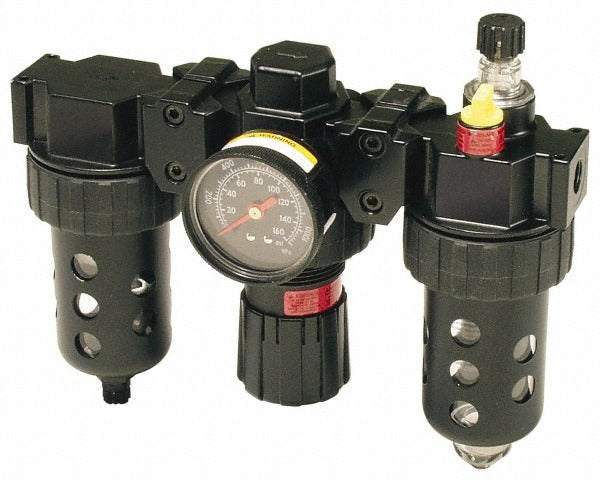

Parker 07B42A18A2BDJ Frl Unit 3/4 Npt 90 Scfm 150 Psi

Product Description

The PARKER 07B42A18A2BDJ is a 3-piece filter-regulator-lubricator (FRL) combination unit designed for compressed air preparation in pneumatic systems. It integrates air filtration, pressure regulation, and lubrication into a single inline assembly, delivering conditioned air to downstream equipment. Rated for 90 SCFM flow capacity and a maximum supply pressure of 150 psi, this unit is sized for 3/4 NPT porting and is suited for industrial and commercial pneumatic applications. A pressure gauge is included, and the manual drain allows controlled removal of collected moisture and contaminants. Licensed HVAC and industrial technicians working with pneumatic controls or air-driven tools will find this a capable inline conditioning solution.

This FRL unit is appropriate for compressed air systems in light industrial, commercial, and mechanical room environments where air quality and consistent downstream pressure are required. It is commonly installed at the point of use ahead of pneumatic actuators, air tools, solenoid valves, or control equipment. The 3/4 NPT port size accommodates moderate-to-high-volume compressed air lines. Its modular connection design allows integration into existing FRL assemblies or standalone installation. The polycarbonate bowl with bowl guard provides visible monitoring of fluid levels and bowl condition during routine service.

Key Features

• 3-piece FRL configuration: filter, regulator, and lubricator in one assembly
• 90 SCFM rated flow capacity at 3/4 NPT port size
• 150 psi maximum supply pressure rating
• Polycarbonate bowl with bowl guard for visual inspection
• Manual drain for controlled moisture and debris removal
• Pressure gauge included with 1/4 inch gauge port
• Modular connection design for inline expansion or standalone use

Compatibility

Designed as an OEM-style inline compressed air preparation unit for pneumatic systems utilizing 3/4 NPT threaded connections. Modular connection support allows pairing with compatible Parker FRL components.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed air systems and applicable pneumatic plumbing codes. Depressurize and isolate the compressed air line completely before installing or servicing this unit. Mount vertically with the bowl oriented downward to ensure proper drainage and lubricator function. Confirm all threaded NPT connections are sealed with appropriate thread sealant compatible with compressed air service.
