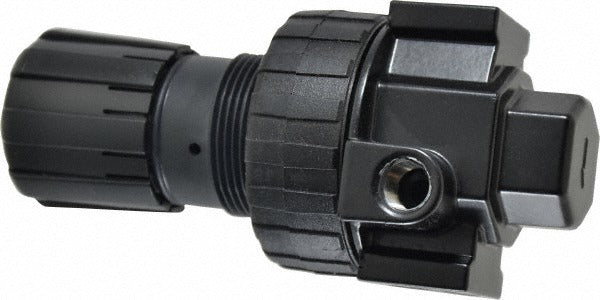

Parker 06R113AC Compact Air Regulator 53 Cfm 250 Psi

Product Description

The PARKER 06R113AC is a compact compressed air regulator designed to control downstream air pressure in pneumatic systems. Built on Parker's 06R series platform, it accepts supply pressure up to 250 psi and delivers a regulated output range of 2 to 125 psi, making it suitable for a wide range of pneumatic tool and equipment applications. The zinc body keeps the unit lightweight at 1.3 pounds while providing durability in industrial and shop environments. A built-in relief function allows excess downstream pressure to vent when the set point is reduced. Licensed pipefitters, industrial maintenance technicians, and pneumatic system installers are the typical trades working with this component.

The 06R113AC is suited for use in compressed air distribution systems where space is limited and a compact form factor is required. The 1/4 inch NPT port size fits standard small-bore air lines commonly found in light industrial, maintenance shop, and equipment panel applications. With a maximum air flow of 53 CFM, it handles high-demand tool circuits without significant pressure drop. The modular connection feature supports integration into Parker modular filter-regulator-lubricator assemblies, simplifying multi-component air preparation line builds.

Key Features

• Compact 06R series design suited for space-constrained pneumatic installations
• Maximum supply pressure of 250 psi with a regulated output range of 2 to 125 psi
• Maximum air flow of 53 CFM for high-demand pneumatic circuits
• 1/4 inch NPT end connections for standard compressed air line compatibility
• Built-in relief function vents excess downstream pressure when set point is reduced
• Modular connection support for integration into multi-component air preparation assemblies

Compatibility

Designed as an OEM-style replacement or drop-in component for compressed air systems using 1/4 inch NPT connections and requiring supply pressures up to 250 psi. Compatible with Parker 06R series modular air preparation components.

Installation Notes

Installation should be performed by a qualified pipefitter or pneumatic systems technician. Depressurize the air supply line completely before removing or installing the regulator. Apply thread sealant appropriate for compressed air service to NPT connections and torque fittings per the fitting manufacturer's guidance. Verify downstream pressure with a calibrated gauge after installation before returning the system to service.
