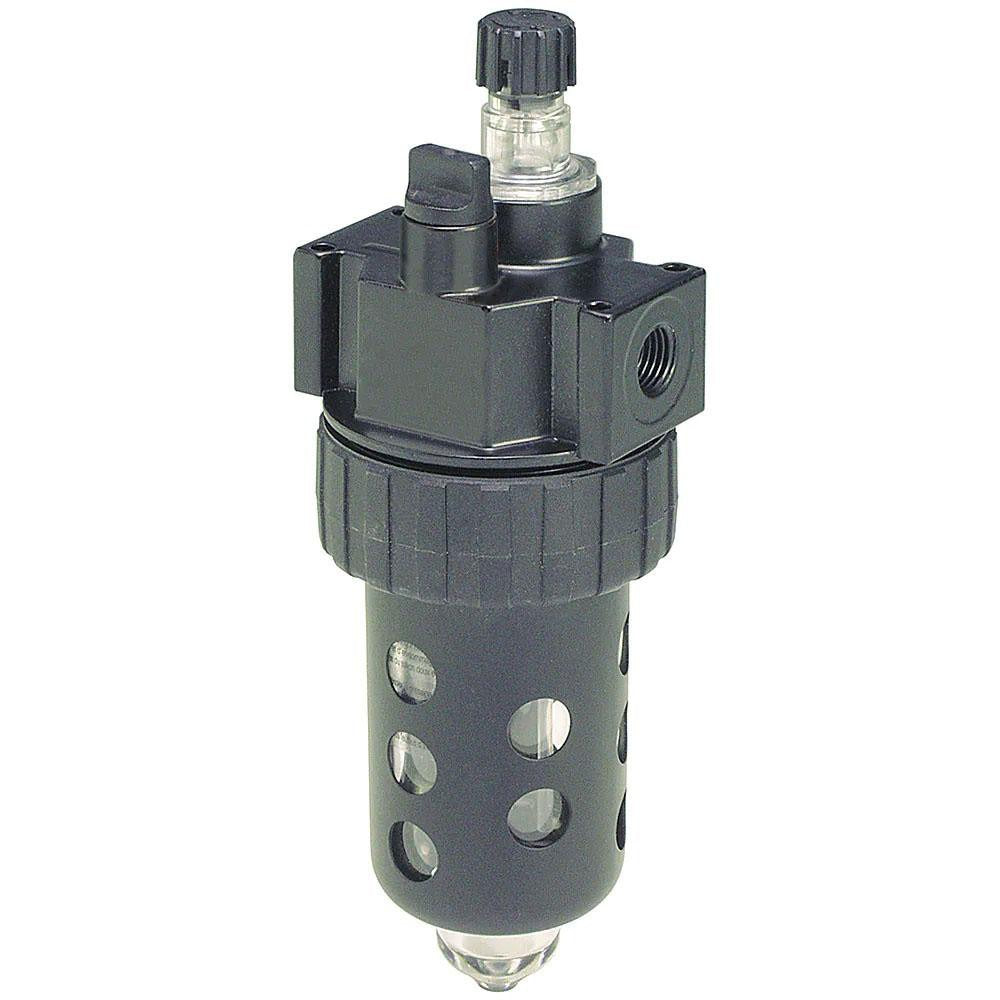

Parker 06L32BE Compressed Air Lubricator 90 Cfm 1/2 Inch Npt

Product Description

The PARKER 06L32BE is an intermediate mist-type compressed air lubricator designed to inject a fine oil mist into a compressed air line, protecting downstream pneumatic tools, cylinders, and valves from wear and corrosion. Built around a zinc body with a polycarbonate bowl and metal bowl guard, it handles airflow up to 90 CFM through a 1/2 inch NPT port. The unit stands 7.82 inches tall, measures 2.74 inches in diameter, and is 2.81 inches wide, making it a compact fit for panel-mount or inline FRL assemblies. Nitrile seals provide reliable performance from 32 degrees F and above. A built-in sight glass allows quick visual confirmation that oil is circulating without removing the bowl.

This lubricator is suited for industrial and commercial compressed air systems where downstream pneumatic equipment requires continuous lubrication. Typical applications include production lines, maintenance shops, and HVAC pneumatic control systems. The 1/2 inch NPT end connections are standard across a wide range of air preparation components, and the modular design allows it to be joined directly with compatible Parker Series 06L filters and regulators to form a complete FRL unit. Bowl capacity is 2.9 oz, appropriate for intermediate-duty service cycles.

Key Features

• Intermediate mist lubricator rated for up to 90 CFM airflow
• 1/2 inch NPT inlet and outlet for direct inline installation
• Zinc body with polycarbonate bowl and metal bowl guard for impact resistance
• Modular connection compatible with Parker Series 06L FRL components
• Integrated sight glass for quick visual oil-flow verification without disassembly
• Nitrile seals rated for service from 32 degrees F

Compatibility

Designed for use within the Parker Series 06L modular air preparation system; the modular connection feature allows direct coupling with compatible Series 06L filters and regulators.

Installation Notes

Installation should be performed by a qualified pneumatic systems technician or industrial maintenance professional. Depressurize and lock out the compressed air supply before installing or servicing the lubricator. Ensure airflow direction matches the arrow marked on the body and that all NPT threads are sealed with appropriate thread tape or sealant. Use manufacturer-recommended pneumatic tool oil only; do not overfill the bowl beyond its 2.9 oz capacity.
